ADASH A3900

One Channel Online Monitoring System

Click below for download

ADASH A3900

Description

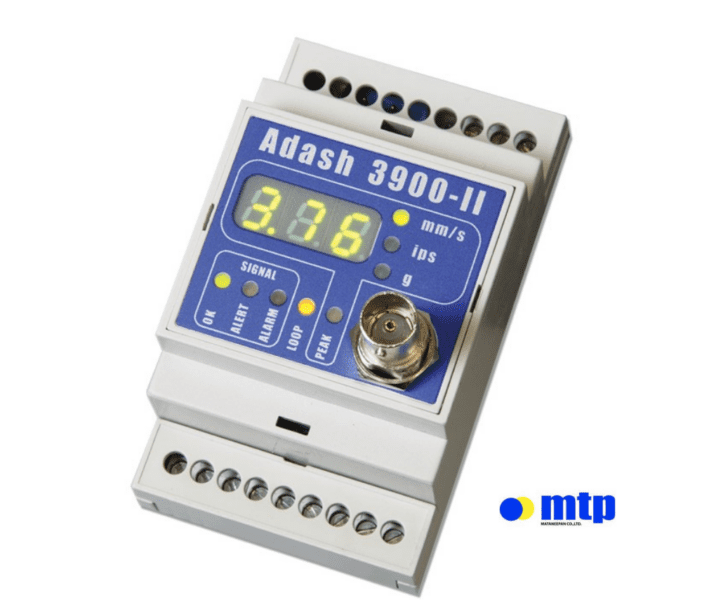

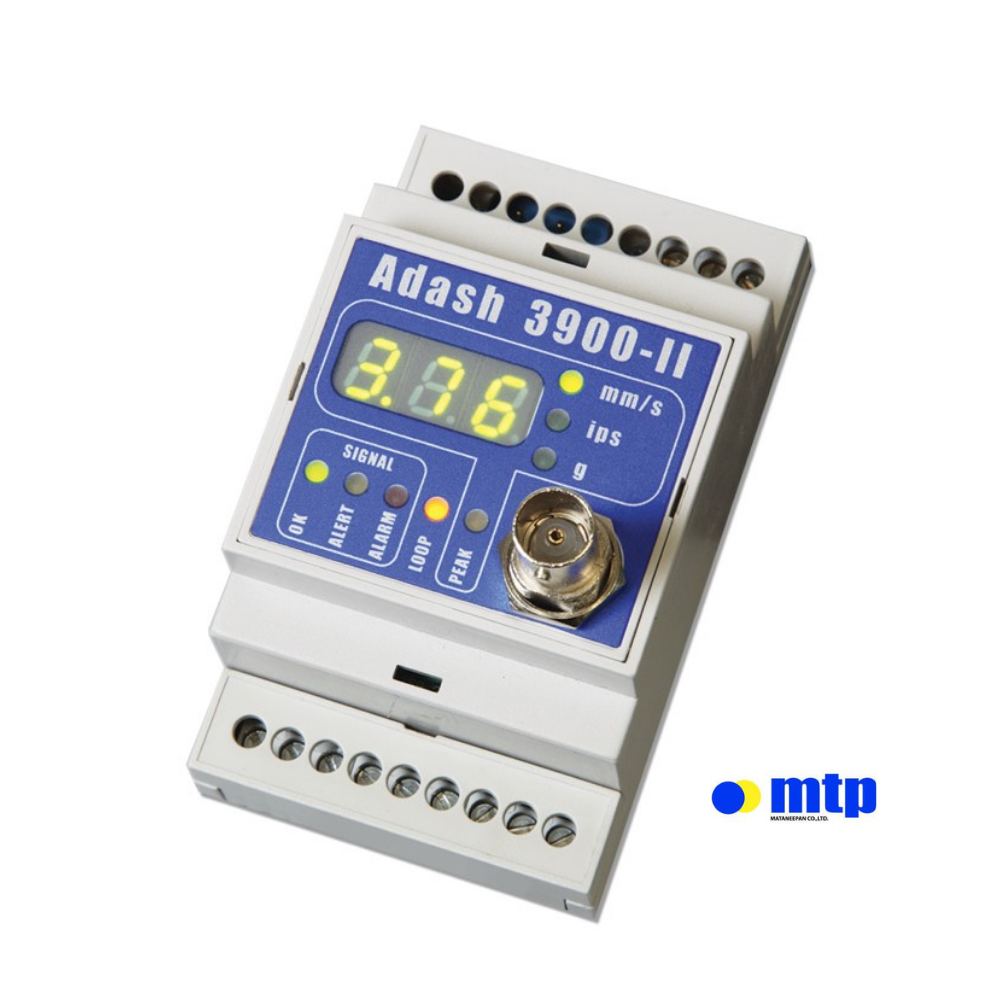

The A3900 is a simple one channel online monitoring system. Measured value is displayed on the front panel
and can be transferred to the control system through 4-20 mA current loop output. Green, yellow and
red LEDs informs you about the machine/bearing vibration state. The A3900 unit includes one programmable
output “ALARM” relay.v





DETAILS OF THIS VIBRATION.

  • Simple vibration monitoring continuous machine or bearing monitoring
  • Set up alarm limits and observe traffic light colors



SPECIFICATION OF ADASH A3900

ADASH A3900 Technical Specification
Input channels: ICP® for acceleration sensor. Input is able to process signal with maximum voltage ±5 V
Outputs: 4- 20 mA current loop (selectable active/passive) with setting of range of measured unit
Measuring Ranges: 0 – 99.9 g, 0 – 999 mm/s (by sensor sensitivity, input signal: max. ±5 V)
Frequency Bands: –                  [ g ] 0,8 Hz – 16 kHz

–                  [ g ] 5 kHz – 16 kHz

–                  [ mm/s ], [ ips ] 10 Hz – 1 kHz

Frequency ranges could be changed under request.

Sensor: accelerometer, ICP® powered LEDs:

–                  Vibration state indication according to defined
vibration limits

–                  Power indication

–                  ICP® error indication

Powering: 20 – 28 V DC (70mA/24V DC), external current loop supply (10-30V DC)
Dimensions: 90 x 53 x 58 mm
Weight: 130 g
Protection: IP 20

WARRANTY

  • 1 YEAR

OUR SPACIAL SERVICE / AFTER SERVICE FROM US

  • FREE TRAINING

CASE TRAINING STUDIES

  • เทรนนิ่งวิธีการใช้เครื่อง  ADASH A3900 ให้กับบริษัท XXXX
