Description

ADASH A4300 VA3 Pro is 3-Channel Vibration Analyzer, Data Collector and Many More. Modularly based – buy only the modes you need

• A true vibration analyzer
  • real time FFTs, time waveforms etc.
• Modularly based
  • buy only the modes you need
• User friendly interface
  • graphical balancing mode

DETAILS OF ADASH A4300 VA3 Pro.

• ‘The A4300 VA3 Pro instrument can be configured according
  to your requirements by choosing measuring modules. There
  are three free modules included in every VA3:
  • Meter
  • FASIT
  • Strobo
• Other modules are optional:
  • Analyzer
  • Route
  • Balancer
  • Recorder
  • Run Up
  • Ultrasound.

What’s in the box?

Choose your accessories

Customize your VA3 Pro kit.

Select a single axis acceleration sensor or triaxial sensor for your day to day data collection.
A speed probe would be needed for balancing job and an ultrasound probe for leak detection.
No problem measuring Orbits, Centerline using Proximity probes.

VERSATILITY & CONNECTIVITY

• 3x AC input – vibrations

• 3x DC input – process values

• 1x Trigger input (speed probe)

• Triaxial sensor ready

• IR temperature sensor

• LED stroboscope / flashlight

• Fast USB 2.0 communication

• Robust Push-Pull connectors

ADASH A4300 VA3 Pro MODULE

Choose the required modules only

MAIN MENU

The A4300 VA3 Pro instrument can be configured according to your requirements by choosing measuring modules. There are three free

modules included in every VA3: Meter, Fasit and Strobo. Other modules are optional: Analyzer, Route, Balancer, Recorder, Run Up or Ultrasound.

METER – FREE MODULE!

The Meter module includes basic vibration measurement screens:

• Overall Vibration Values (RMS, 0-PEAK)
• FFT Spectrum
• Time Signal
• Frequency Bands
• Displacement
• Temperature

FASIT – FREE MODULE!

FASIT (Fault Source Identification Tool) is an expert system for

automatic detection of possible machine faults:

•  Unbalance
•  Misalignment
• Looseness
• Bearing faults

STROBO – FREE MODULE!

Switch on the stroboscope to visually “freeze” the machine movement and check its rotating parts. The speed of the machine can be detected.

ANALYZER

Select the type of the measurement (from simple overall values through FFTs and time signals to more advanced measurements with Proximity probes such as Orbits), set up the measurement settings according to your requirements (frequency range, sampling, units etc.) and take all the predefined measurements simultaneously.

ROUTE

The route module is used for day to day data collection of your factory machinery. Simply create your route tree with measurement points location in the DDS software (possible also in the free DDS version) and take the measurements regularly. Transfer the collected data to DDS software to watch the trends and analyze the data.

BALANCER

The balancer allows you to perform one or two plane balancing job of rotating parts such as industrial fans, blowers, spindles etc.

RECORDER

A unique measurement mode with unappreciated value. Recorder “records” the raw signal from the sensor, means raw signal from the machine. This allows to make a post processing of the signal later on your PC. You can play this record again and again and apply any measurement setting to it.

RUN UP

Similar to Analyzer mode where you can setup any measurement which you like. RunUp allows you to control the saving of data for example as soon as possible, or by speed change, time change etc.

ULTRASOUND

Measurement of sound inaudible to the human ear – ultrasound.

Typical application are air leak detection, electrical arcing or early bearing fault detection.

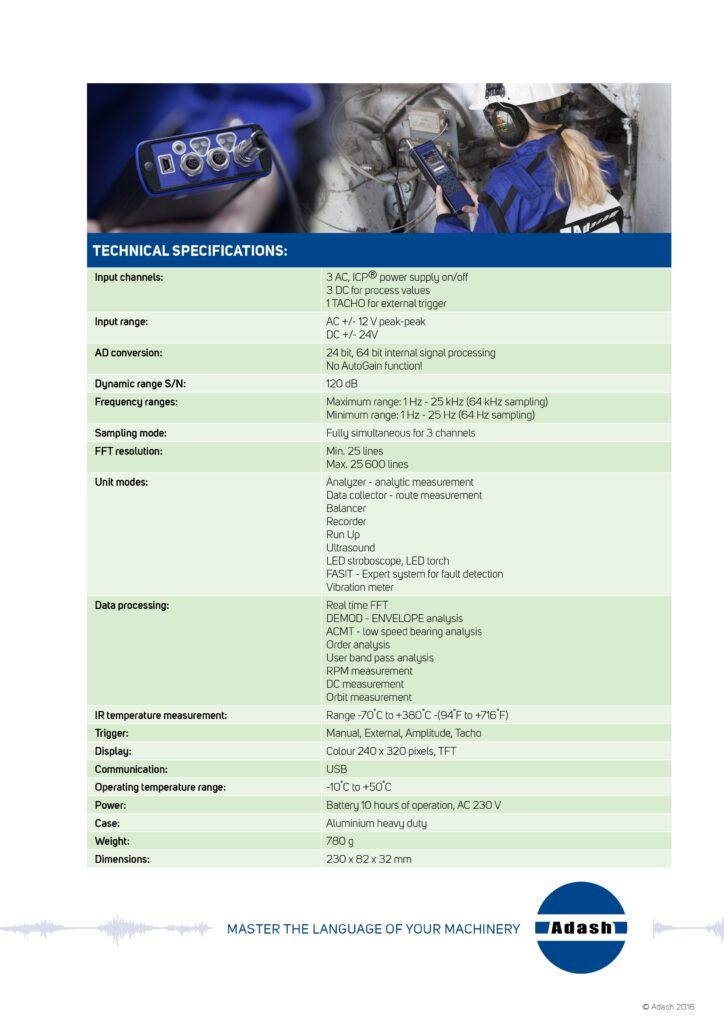

SPEC OF ADASH A4300 VA3 Pro

Input channels:

• 3 x AC, ICP® power supply on/off
• 3 x DC for process values
• 1 x TACHO for speed probe / external trigger

Input range:

• AC +/- 12 V peak-peak
• DC +/- 24V

AD conversion:

• 24 bit, 64 bit internal signal processing
• No AutoGain function!

Dynamic range S/N:

• 120 dB

Frequency ranges (-3 dB):

• Maximum range: 0.5 Hz – 25 kHz (64 kHz sampling)
• Minimum range: 0.5 Hz – 25 Hz (64 Hz sampling)

Sampling mode:

• Fully simultaneous for all 3 channels

FFT resolution:

• Min. 25 lines
• Max. 25 600 lines

Measurement modes:

• Analyzer – analytical measurements
• Data collector – route measurements
• Balancer – 1 and 2 plane on site balancing
• Recorder – raw signal recording for later post analysis
• Run Up – run up and coast down measurements
• Ultrasound – measurement of ultrasound in 30 – 50 kHz range
• LED stroboscope, LED torch
• FASIT – Expert system for automatic fault detection
• Vibration meter – basic vibration measurements

Software:

• Free version of DDS software (limited database size)
• Licensed DDS software

Data processing:

• Real time FFT
• DEMOD – ENVELOPE analysis
• ACMT – low speed bearing analysis
• Order analysis
• User band pass analysis
• RPM measurement
• DC measurement
• Orbit measurement

IR temperature measurement:

• From -70˚C to +380˚C (-94˚F to +716˚F)

Trigger:

• Manual, External, Amplitude, Tacho

Display:

• Colour 240 x 320 pixels, TFT

Interface:

• USB 2.0, 3.0 compatible

Operating temperature range:

• -10˚C to +50˚C

Power:

• Battery pack for more than 10 hours of continous operation

Case:

• Aluminium – heavy duty (optionally with IP65 rating)

Weight:

• 780 g

Dimensions:

• 230 x 82 x 32 mm

Languages:

• Languages: English, Spanish, German, French, Portuguese, Russian, Czech, Hungarian, Polish
