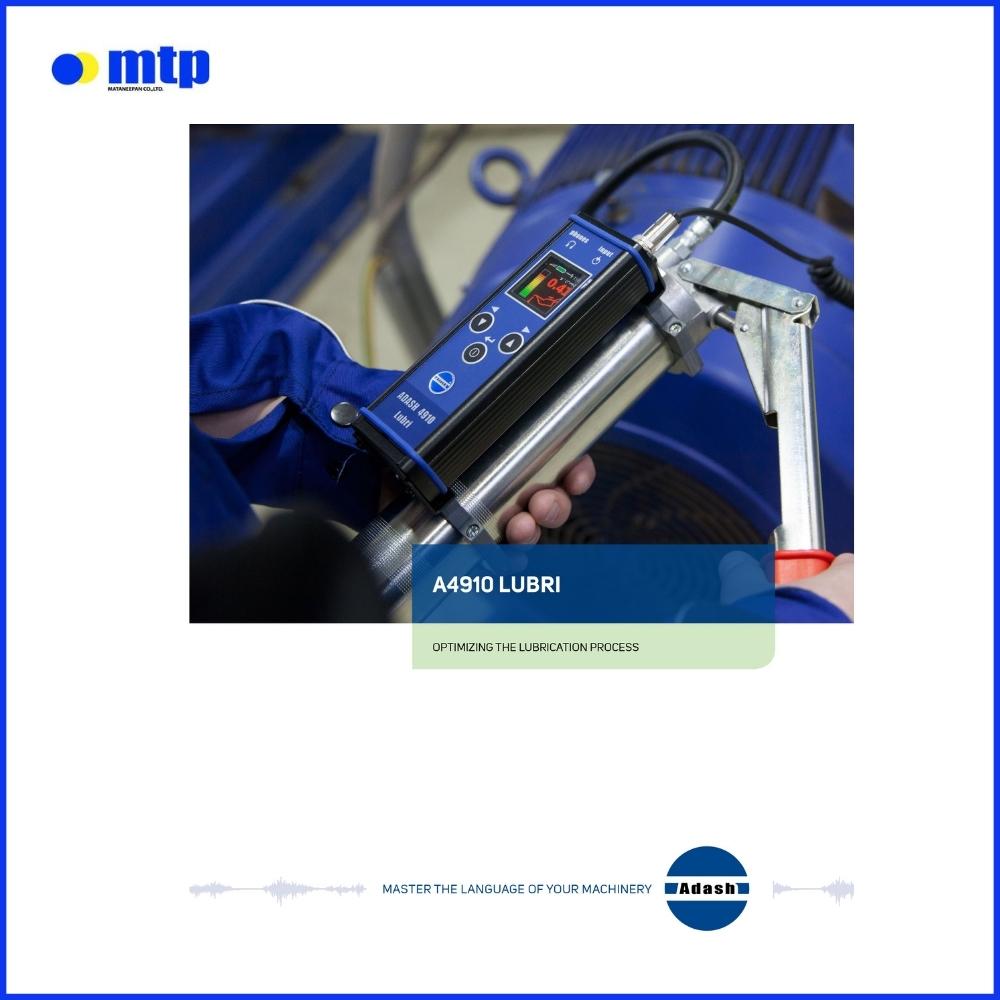

ADASH A4910 Lubri

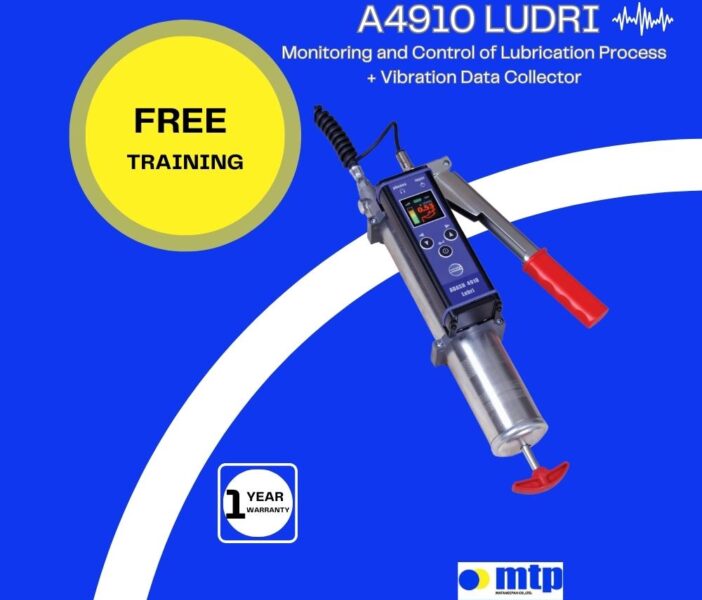

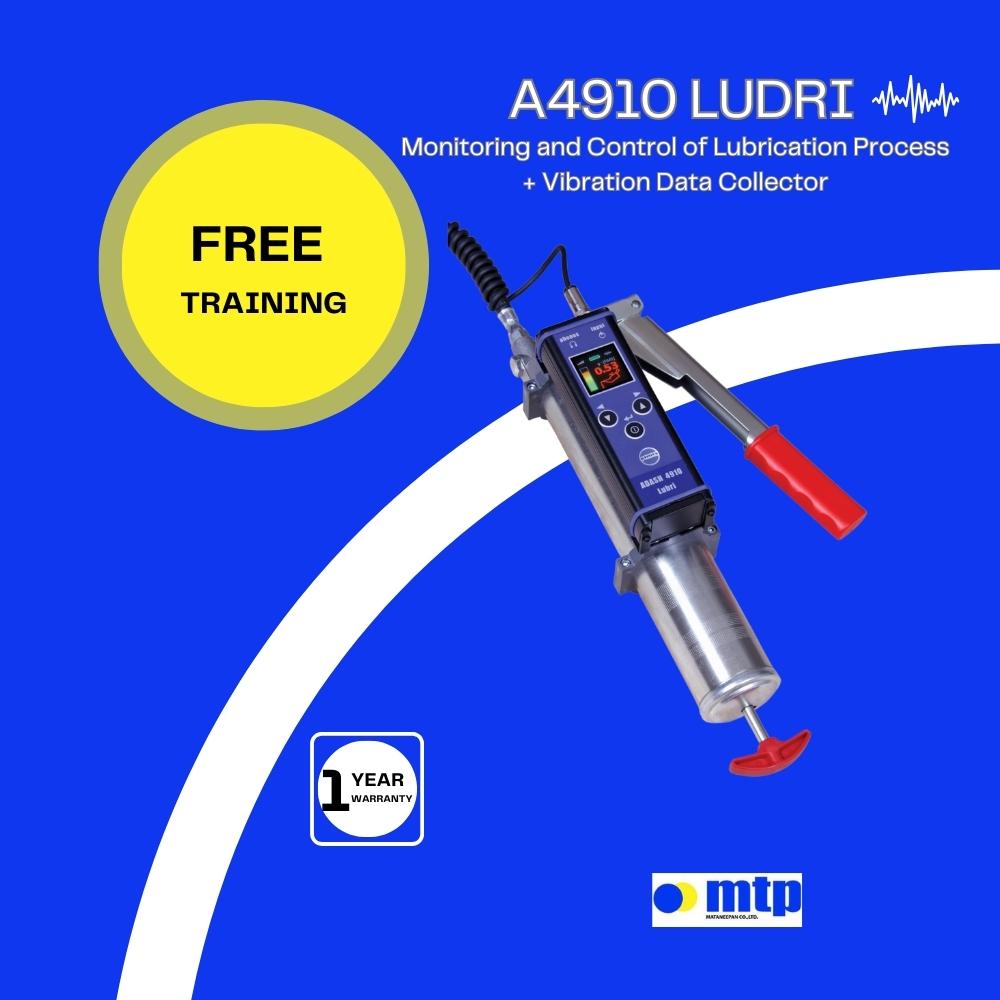

Monitoring and Control of Lubrication Process + Vibration Data Collector

Click below for download V

ADASH A4910 Lubri

Description

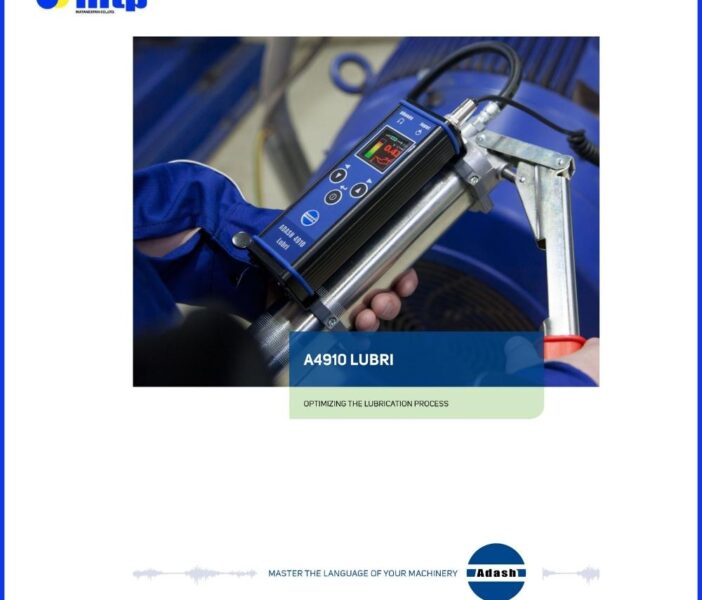

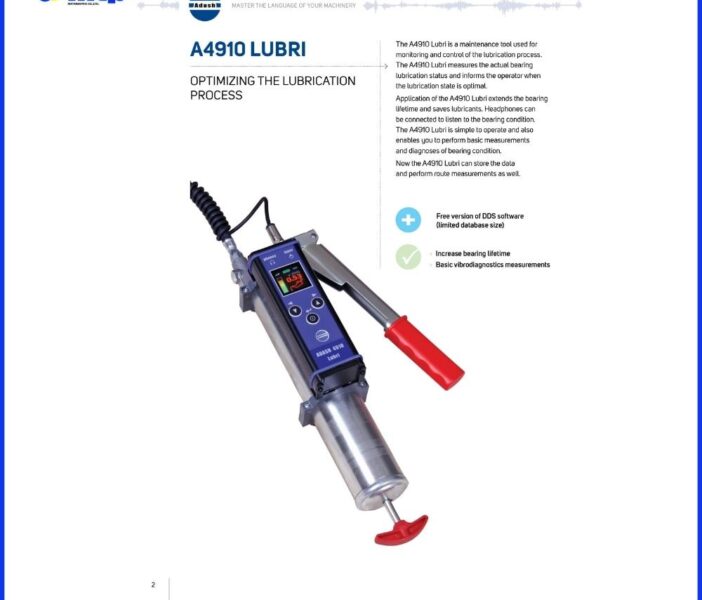

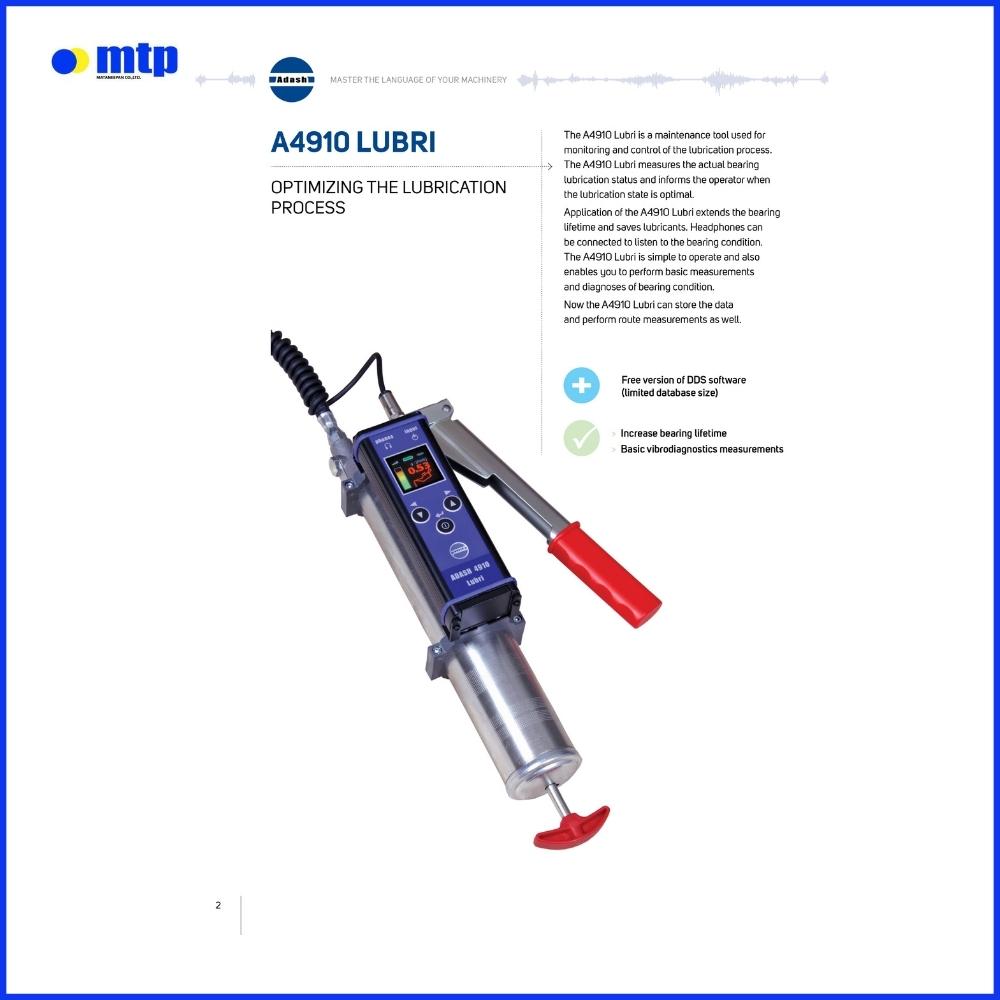

ADASH A4910 Lubri is Monitoring and Control of Lubrication Process + Vibration Data Collector





DETAILS OF THIS VIBRATION.

  • Lubrication optimization – add only necessary amount of grease into a bearing
  • Saves your bearings – assures that your bearing is well greased
  • Data collector – measure, store and trend bearing and whole machine body vibrations
  • 4 MB memory for data storage
  • LUBRI + FREE DDS SOFTWARE

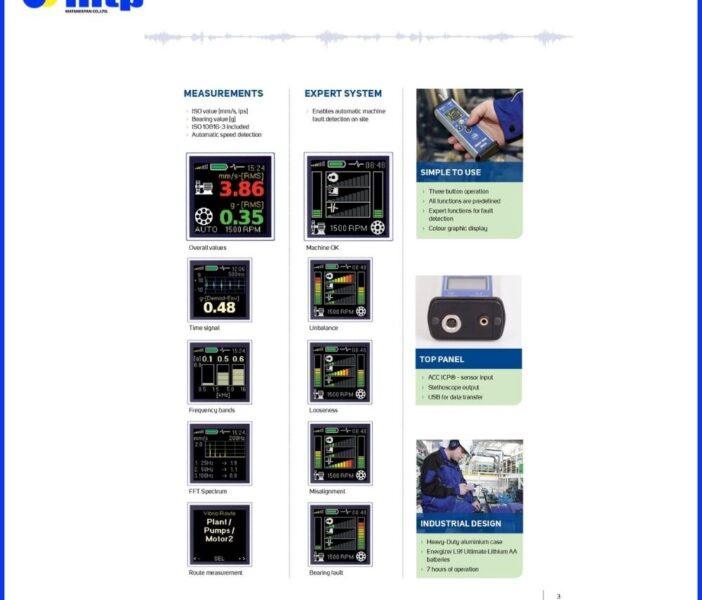

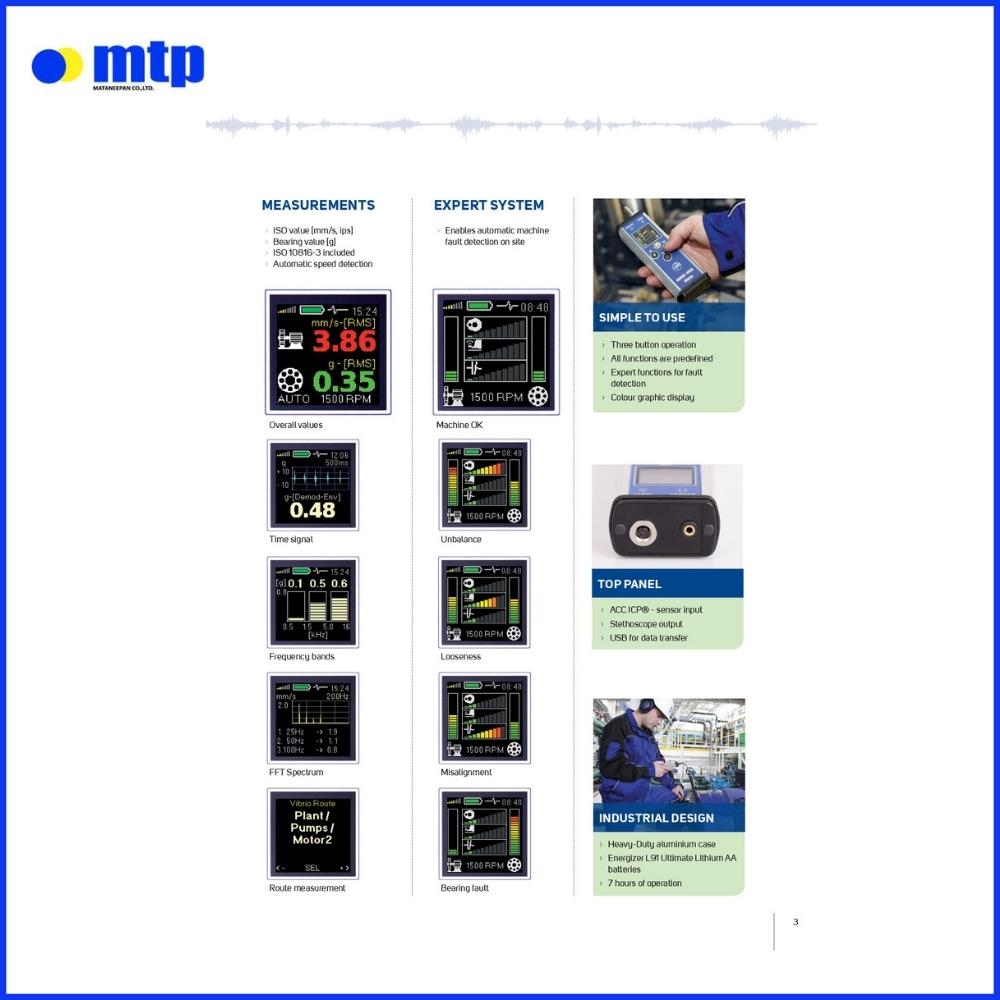

SPECIFICATION OF ADASH A4910 Lubri

ADASH A4910 Lubri Technical Specification
Input: 1x ICP® powered accelerometer with 100 mV/g sensitivity
Output: 1x AC signal 8 Ω / 0,5 W for external headphones
(signal listening)
Measurements: Acceleration RMS 500 – 16 000 Hz [g]
Acceleration Peak 500 – 16 000 Hz [g]
Velocity RMS 10 – 1 000 Hz [mm/s, ips]
Velocity Peak 10 – 1 000 Hz [mm/s, ips]
Acceleration frequency
bands :
500-1 500Hz, 1 500-5 000Hz, 5 000 – 16 000 Hz [g]
Memory: 4 MB
Data storing: Off-Route Route with DDS software (free download)
Interface: USB 3.0, 2.0 compatible
Software: Free version of DDS software (limited database size)
Display: Colour graphic OLED display 128×128 pixels,
diagonal 1.5“ (38 mm)
Power: 2 x 1,5V (AA alkaline batteries) or 2 x 1,2V
(NiMH AA rechargeable batteries)
Dimensions: 150 x 60 x 35 mm
Weight: 330 g including batteries (without cable, sensor and magnet)

WARRANTY

  • 1 YEAR

OUR SPACIAL SERVICE / AFTER SERVICE FROM US

  • FREE TRAINING

CASE TRAINING STUDIES

  • เทรนนิ่งวิธีการใช้เครื่อง ADASH A4910 Lubri ให้กับบริษัท XXXX
