1KV Digital Armature Surge Tester

APPLICATIONS

The Surge tester is ideally suited for manufacturers of traction motors to check the winding of DC armatures.

Bar-To-Bar Test for DC Armatures (Single Channel)
To perform this test, the armature to be tested is positioned between centers so that is could be rotated. A fixture with adjustable brushes is used to contact the armature at three positions. Two segments with an equal number of bars are then compared and if the two segments are balanced and contain no faults, a single pattern will appear on the Display. Faults are located by noting the change in the pattern as the armature is rotated bar-to-bar. The important advantage surge testing offers when applied to armature is the ability to locate high resistance carbon shorts. These can be major problem and cannot be detected by the low voltage tests normally done. Because the Surge tester utilizes much higher levels, these faults can be determined and located in most of the cases.

  • Armature Of DC Motor



CONTACT US

Description

1KV Digital Armature Surge Tester

Model: D-1KAT

The Digital Armature Surge Tester with bar-to-bar test is a cost-effective solution to check the quality of Small to Medium range of DC Armatures. The Bar-To-Bar Test is provided to test the Low impedance of the Series wound Armatures and Field coils of DC Traction Motors. The Surge Tester has an Embedded Industrial PC with 8 inch Touch screen Display and software to Store, Recall and Print the Test Reports.

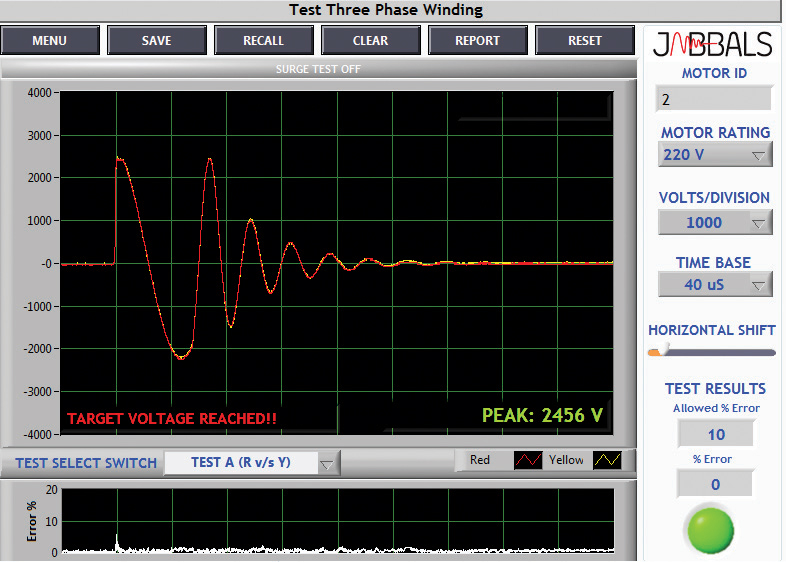

SOFTWARE TEST SCREEN



FEATURES

  • Infinite Model Storage Capability
  • Job Work Management Area For Motor Data Reference
  • Dual Feature To Either Store And Compare Against Master Waveform Or Compare Between Two Windings Simultaneously
  • Colour Coded Waveforms For Better Analysis
  • LABVIEW Software To Store, Print And Recall Surge Test Waveforms & Reports
  • Graphical And Numerical Representation Of %Error Between The Waveforms
  • Automatic Report Generation In MS Word
  • Target Voltage Indication Based On Motor Ratings



SOFTWARE INDICATOR & CONTROLS

  • Adjustable Volts/Div And TimeBase
  • Colour Coded Waveform Display
  • Surge Test Peak Voltage Indicator
  • Graphical And Numerical %Error Display
  • Target Voltage Indicator Based On Motor Rating>
  • Test Result Lamp Indicator
  • Save, Recall And Print Waveforms & Reports





BENEFITS

  • Footswitch For Hands Free Operation
  • Highly Sensitive Fault Detection Capability
  • 8 Inch Touch Screen Colour Display
  • Leads Energized Warning Indicator
  • Hand Held Probe Applicator For Higher Current Capabilities Of Bar-To-Bar In Order To Detect The TIG Weld Short & High Resistance Joints
  • Printer Can Be Connected To Tester Via USB For Direct Printouts



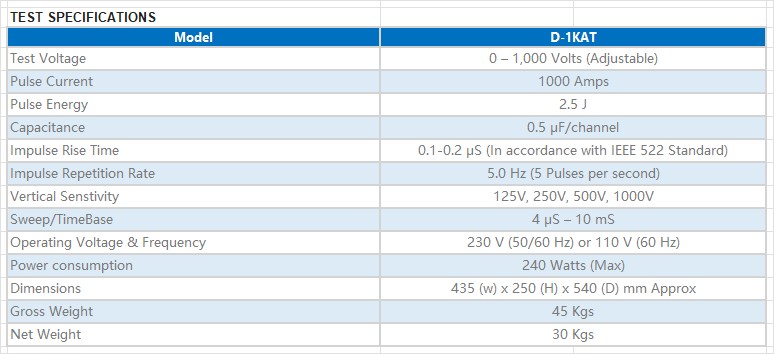

SPECIFICATIONS OF PC

  • 8 Inch Touch Screen Display
  • Industrial Grade CPU (Intel Dual Core)
  • 2GB RAM / 240GB SSD
  • Windows 10 / MS Office / Anti Virus
  • Dust Proof / Water Resistant / 0-60 C
  • 2 USB Ports, VGA Port
  • Wireless Keyboard & Mouse
