5KV & 6KV Digital Surge Tester with DC Hipot & Resistance Test

APPLICATIONS

This tester is widely used for testing of Newly and Rewound Motors. It helps in finding and predicting the faults in windings before it actually happens. This tester is extremely portable that can be easily used in the Motor shop and in-field to test the following:

  • 1φ & 3φ Windings
  • LT Coils
  • AC Stators
  • BLDC Stators
  • Transformer Coils
  • Solenoids & Chokes



CONTACT US

Description

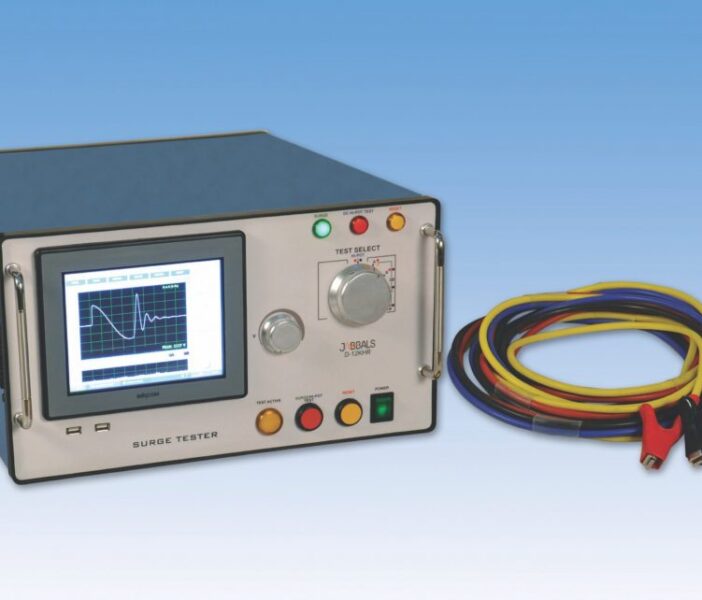

5KV & 6KV Digital Surge Tester with DC Hipot & Resistance Test

Model: D-5KHR & D-6KHR

The Digital Surge Tester is designed specifically to test the coils and windings of Low range AC Rotating machines ranging up to 660 V. The Surge Tester has an Embedded Industrial PC with 8 inch Touch screen Display and software to Store, Recall and Print the Test Reports.

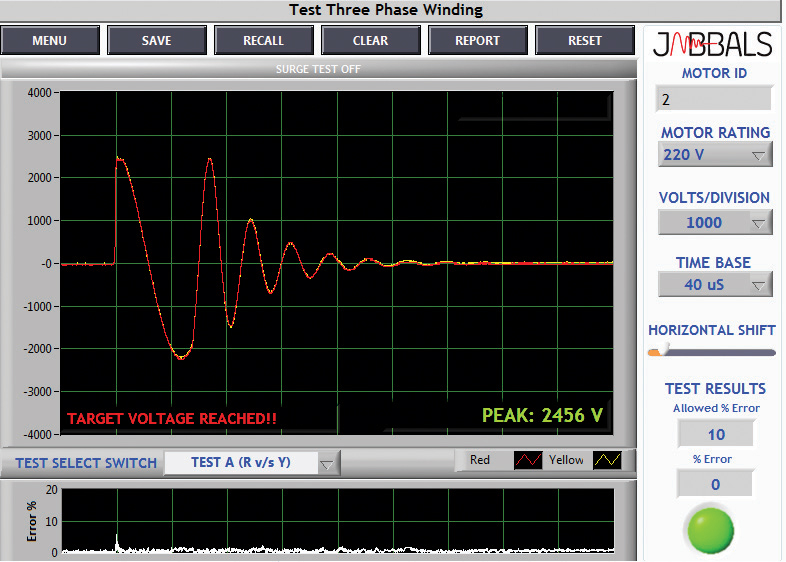

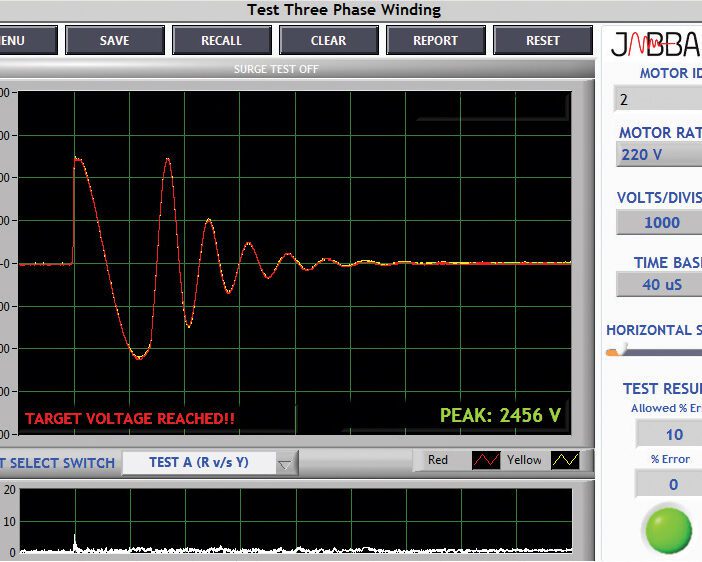

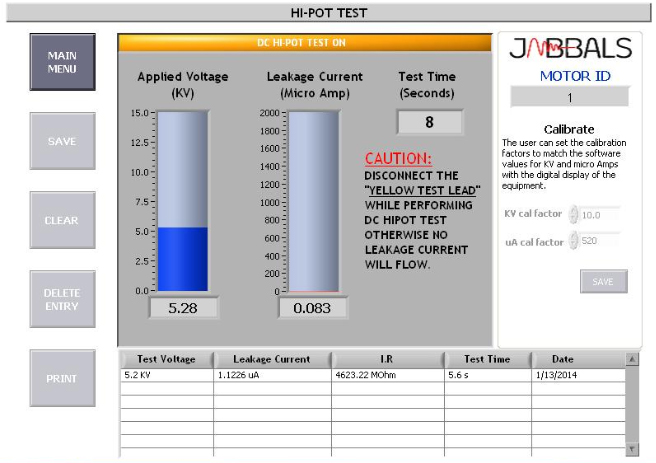

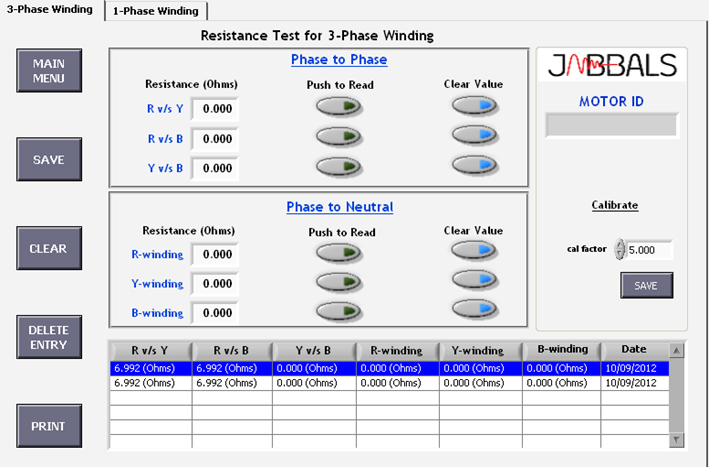

SOFTWARE TEST SCREEN



FEATURES

  • Infinite Model Storage Capability
  • Job Work Management Area For Motor Data Reference
  • Dual Feature To Either Store And Compare Against Master Waveform Or Compare Between Two Windings Simultaneously
  • Colour Coded Waveforms For Better Analysis
  • LABVIEW Software To Store, Print And Recall Surge Test Waveforms & Reports
  • Graphical And Numerical Representation Of %Error Between The Waveforms
  • Automatic Report Generation In MS Word
  • Target Voltage Indication Based On Motor Ratings



SOFTWARE INDICATOR & CONTROLS

  • Adjustable Volts/Div And Time Base
  • Colour Coded Waveform Display
  • Surge Test Peak Voltage Indicator
  • Graphical And Numerical %Error Display
  • Target Voltage Indicator Based On Motor Rating
  • Test Result Lamp Indicator
  • Save, Recall And Print Waveforms & Reports



BENEFITS

  • Zero Start Lock For Operator Safety
  •  Footswitch For Hands Free Operation
  •  Highly Sensitive Fault Detection Capability
  •  Test Leads Insulated Upto 45KV Rating
  •  8 Inch Touch Screen Colour Display
  •  Leads Energized Warning Indicator
  •  1φ & 3φ Test Select Switch
  •  Printer Can Be Connected To Tester Via USB For Direct Printouts



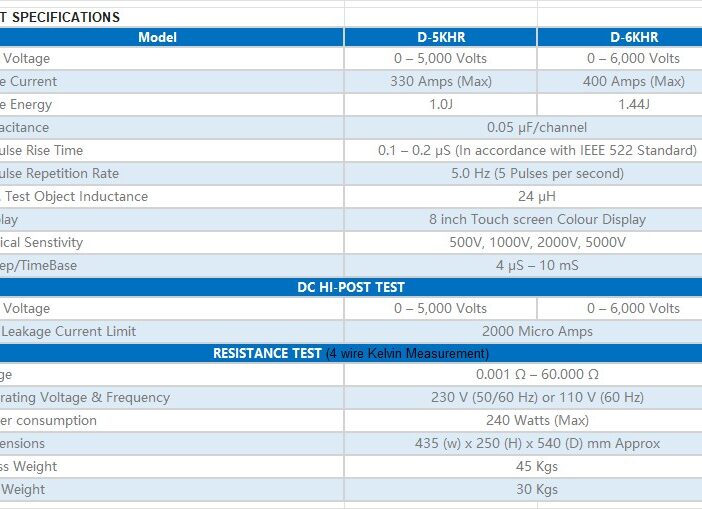

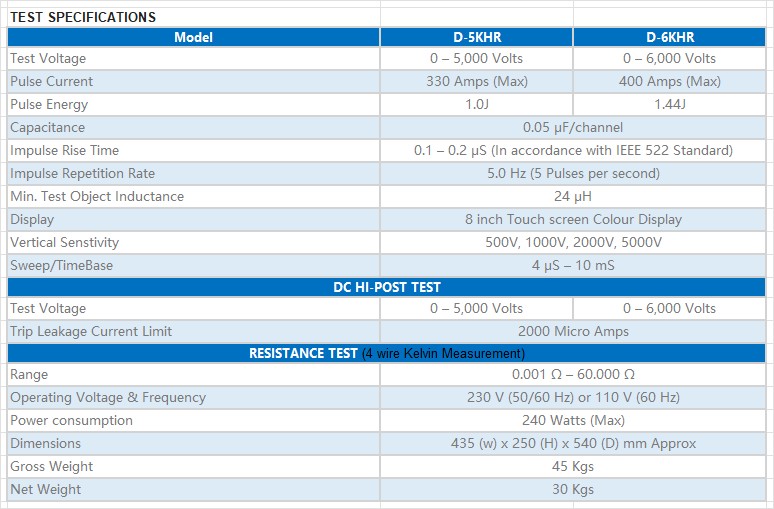

SPECIFICATIONS OF PC

  • 8 Inch Touch Screen Display
  • Industrial Grade CPU (Intel Dual Core)
  • 2GB RAM / 240GB SSD
  • Windows 10 / MS Office / Anti Virus
  • Dust Proof / Water Resistant / 0-60 C
  • 2 USB Ports, VGA Port
  • Wireless Keyboard & Mouse
