EV Motor Automatic Balancer

EV Motor Automatic Balancing Machines With CE, ISO, SGS, BV, New Technology, High-Quality, For Sale, Made In China, From China, For Rotors, Measuring, New, JP, From Professional Supplier

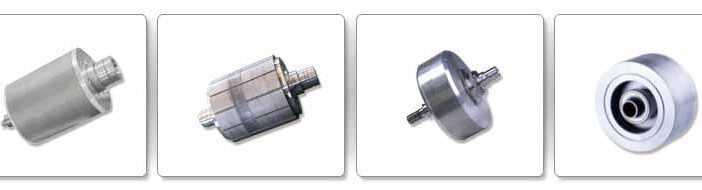

The Balancing machine produced by Shanghai Jianping is used in the unbalance detection of rotating workpieces such as various large and medium-sized motors rotors, impellers, crankshafts, rollers and shafts etc.

Click below for download

ADASH A4900 Vibrio M



CONTACT US

Description

EV Motor Automatic Balancing

1.Specially designed brackets transmit mechanical force with low vibration damping

2.Durable and reliable sensor possesses good linearity

3.Permanent calibration



Product Details

If you are looking for Balancing machines with CE, ISO, SGS, and BV from professional supplier and with new technology, or if you are checking high-quality products made in China, new for rotors from China, or balancing machines, please feel free to contact JP Balancing Machine.

EV Motor Automatic Balancing

JP Balancing Machines is your personal top-choice dynamic balancing expert. As a balancing company, we produce automatic balancing machines .horizontal balancing machines, special balancing machines and accept special customization for all industrial balancer. Moreover, we keep upgrading automatic balancing machine for automobile spares, to be the lead of whole line balance.

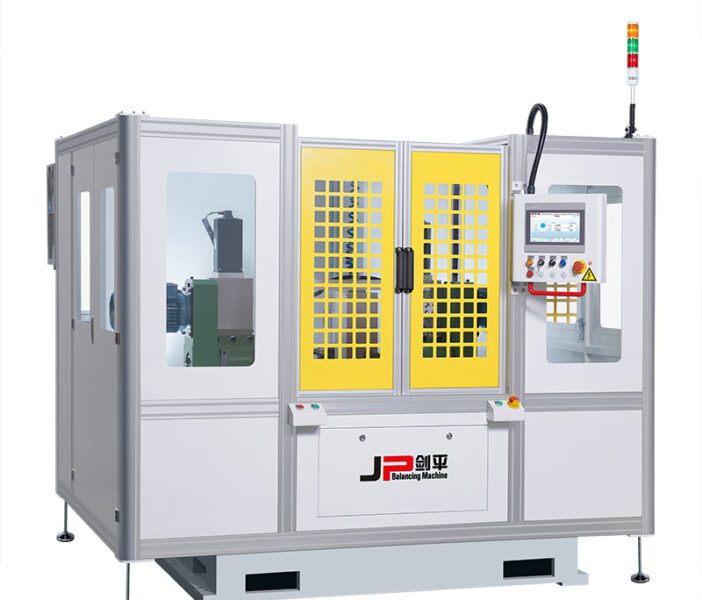

Four-Station End Surface Drilling & Milling Automatic Balancer

Application

It is applied to the unbalance measurement and correction of rotors and EV motor rotors that require weight removal on end surface, and can integrate with rotor assembly line to achieve automatic production.



Features

1.Self-contained assembly line automatic loading and unloading, can integrate with production line to achieve automatic production

2.Automatic sorting after the product OK/NG judgement

3.Fast cycle time, high efficiency, suitable for mass production

4.Four stations: loading and unloading, initial test, correction, and independent retest station, improving work efficiency

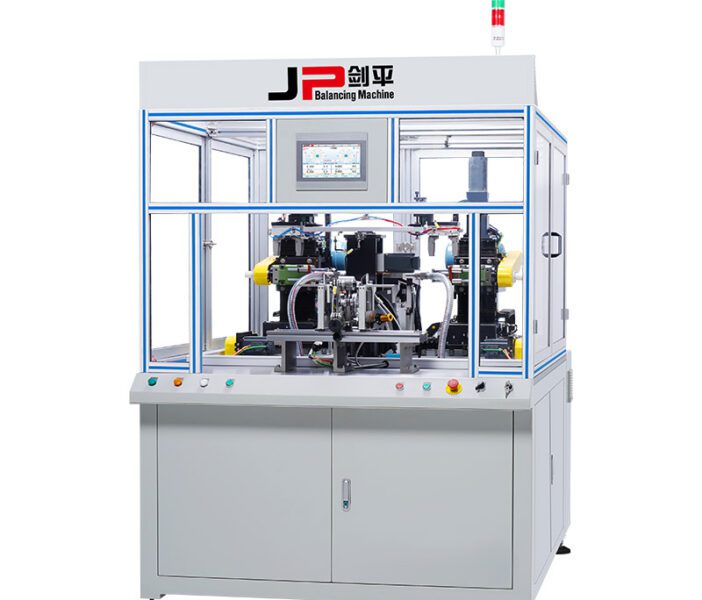

Two-Station End Surface Drilling & Milling Automatic Balancer

Application

It is mainly applied to the unbalance measurement and correction of rotors and those rotors which require weight removal on the end surface, and can integrate with rotor assembly line to realize automatic production.



Features

1.Balancing and weight removal is one-time completion, one machine just requires one person.

2.Fast production cycle time, higher once reduction ratio.

3.Convenient for product changeover, just replace the product fixture and adjust the sensor position.

4.HMI with memory function for production capacity and real-time production information.

5.Rigid structure design, high service life.

6.Automatically drill, remove weight and correct the workpiece.

7.Measuring, drilling and weight removal data can be exported, convenient for user to do data summary statistics.

8.Can integrate with assembly line to provide fully automatic production.

9.Stable performance, extremely low failure rate. When a fault occurs, our professionals can remotely control and repair it.




Two-Station EV Motor Automatic Balancer

Application

It is mainly applied to the unbalance measurement and correction of rotors and those rotors which require weight removal on the end surface, and can integrate with rotor assembly line to realize automatic production.



Features

1.Balancing and weight removal is one-time completion, one machine just requires one person.

2.Fast production cycle time, higher once reduction ratio.

3.Convenient for product changeover, just replace the product fixture and adjust the sensor position.

4.HMI with memory function for production capacity and real-time production information.

5.Rigid structure design, high service life.

6.Automatically drill, remove weight and correct the workpiece.

7.Measuring, drilling and weight removal data can be exported, convenient for user to do data summary statistics.

8.Can integrate with assembly line to provide fully automatic production.

9.Stable performance, extremely low failure rate. When a fault occurs, our professionals can remotely control and repair it.

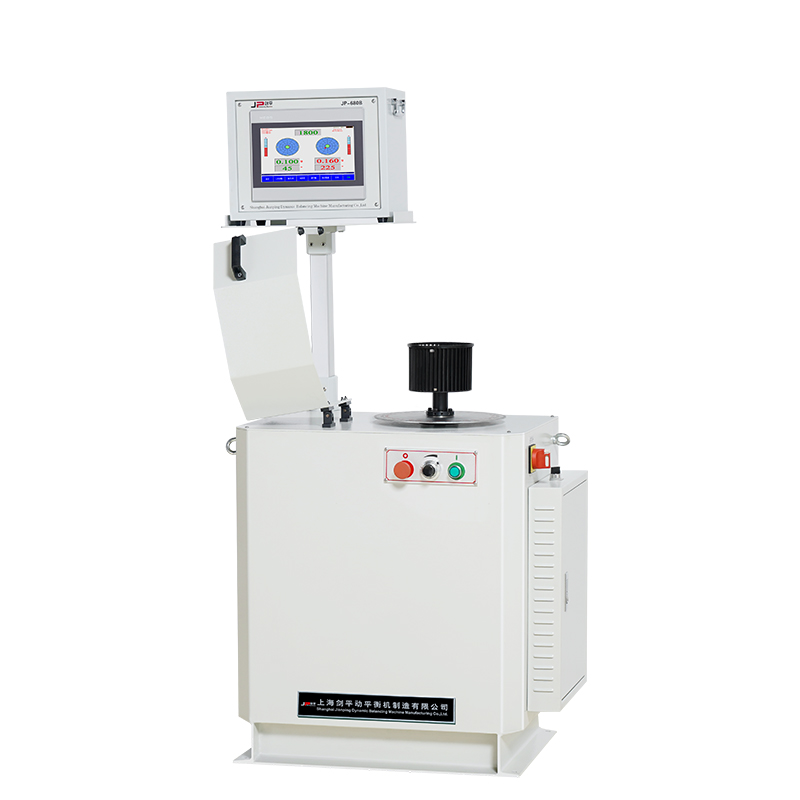

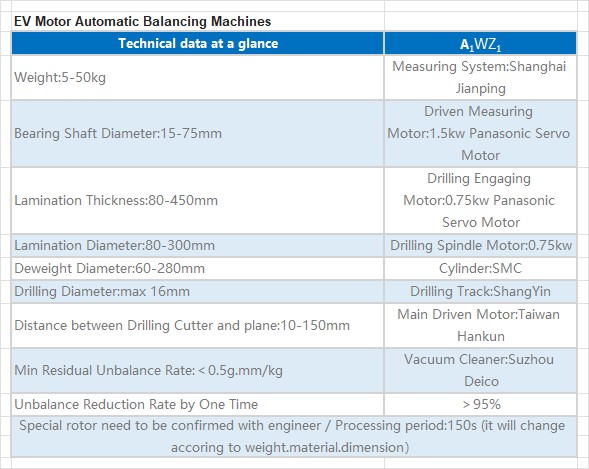

EV Motor Automatic Balancing Machines

Application

It is applied to the unbalance correction of the automobile EV motor rotors.

Features

1.Professionally designed brackets, which can effectively transmit mechanical force, firm and reliable, with low vibration damping and good rigidity

2.High sensitivity sensor, good linearity, durable and reliable

3.Calibration measurement principle, high precision, allowing high initial unbalance

4.Belt drive structure, high measurement accuracy, more convenient to use

5.Advanced electronic measurement system, friendly HMI, easy to operate

6.Modular design, wide application range
