Laser Shaft Alignment : ROTALIGN Touch

Adaptive Alignment capabilities


  • Adaptive Alignment capabilities
  • Single-laser technology sensALIGN 7 featuring intelliSWEEP, intelliPOINT, and intelliPASS

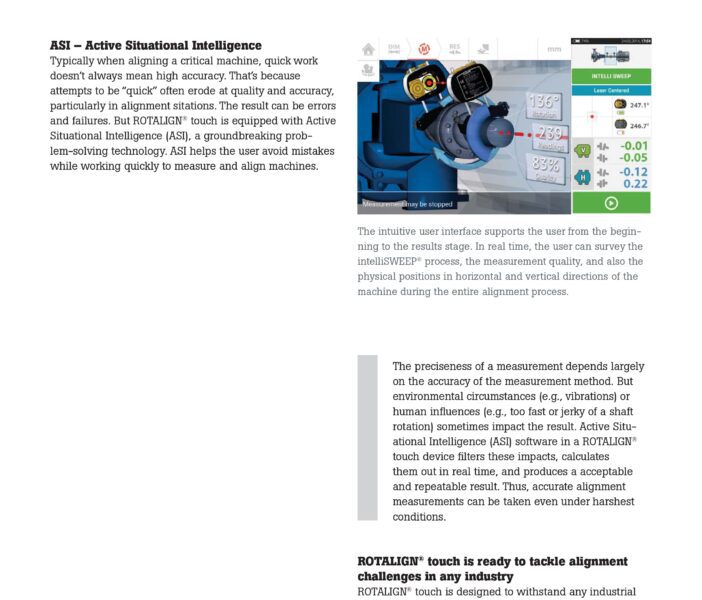

  • Active Situational Intelligence immediately adjusts to specific alignment challenges in real time
  • Multi-coupling shaft measurement and simultaneous Live Move for up to six couplings
  • In-situ Cardan shaft alignment
  • Vertical machine alignment with vertiSWEEP continuous measurement mode
  • Monitor thermal growth and pipe strain with Live Trend and Multi-coupling Live Trend
  • Soft foot diagnosis
  • Horizontal and vertical Move Simulator
  • Alignment Reliability Center 4.0 with cloud data transfer*
  • Mobile connectivity with integrated Wi-Fi, Bluetooth, RFID, and camera*
    * optional features.


Click below for download

ADASH A4900 Vibrio M






The most adaptable laser shaft alignment tool


Product Description

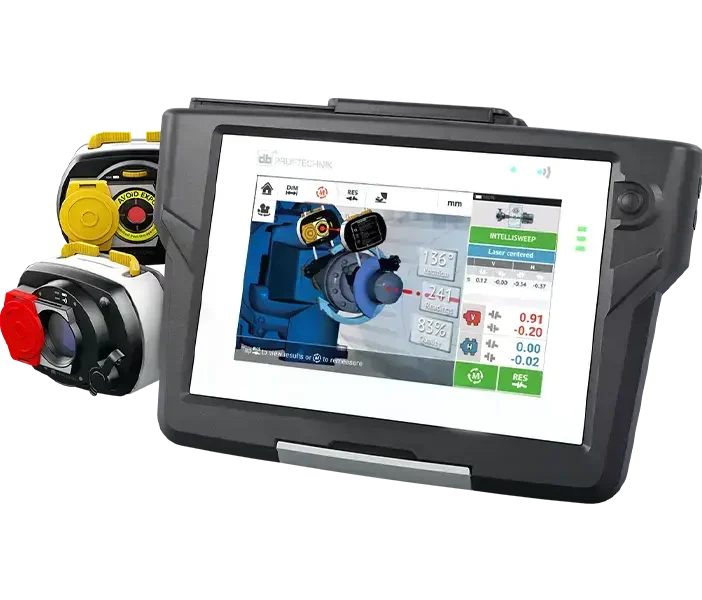

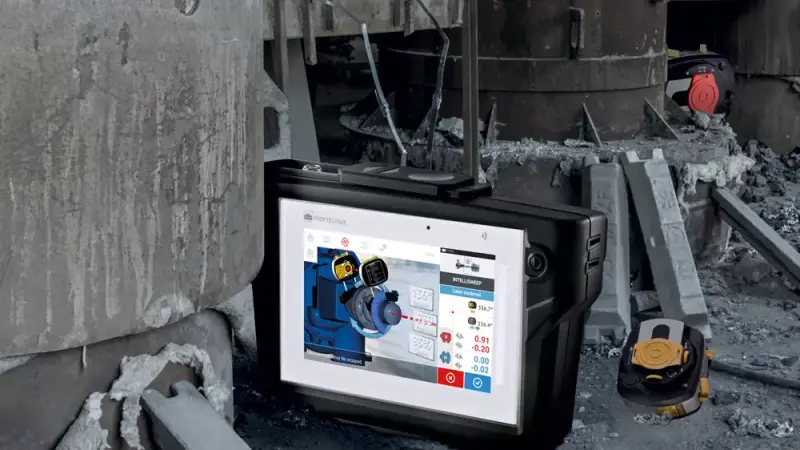

RotAlign Touch – Advanced Laser Alignment System

RotAlign Touch delivers unrivaled precision and easy-of-use with cutting edge technology from the old pros in laser alignment, Prüftechnik.

• Complete system: A single tool for standard alignments, advanced applications, and software analysis that provides maximum return on investment (ROI) for users

• User-friendly: Features an intuitive touchscreen interface with guided procedures, making complex alignment tasks more accessible to users of different skill levels (WiFi & Bluetooth connected)

• Advanced software & cloud connectivity: Comes with full suite of software options, including cloud data transfer and comprehensive analysis tools, allowing for detailed monitoring and alignment trend analysis.

• Machine train alignment: 14 machines

• Simultaneous coupling alignment: Enables real-time adjustments on up to six couplings simultaneously, enhancing efficiency and accuracy during complex alignments.

• In-situ cardan shaft alignment: Offers specialized features for cardan shaft alignment without the need for disassembly, saving time and reducing effort.

• Thermal growth monitoring: Includes capabilities to monitor and analyze thermal growth and pipe strain, allowing for more informed maintenance decisions.

• Vertical machine alignment: Features vertiSWEEP continuous measurement mode, specifically designed for precise vertical shaft alignment tasks.

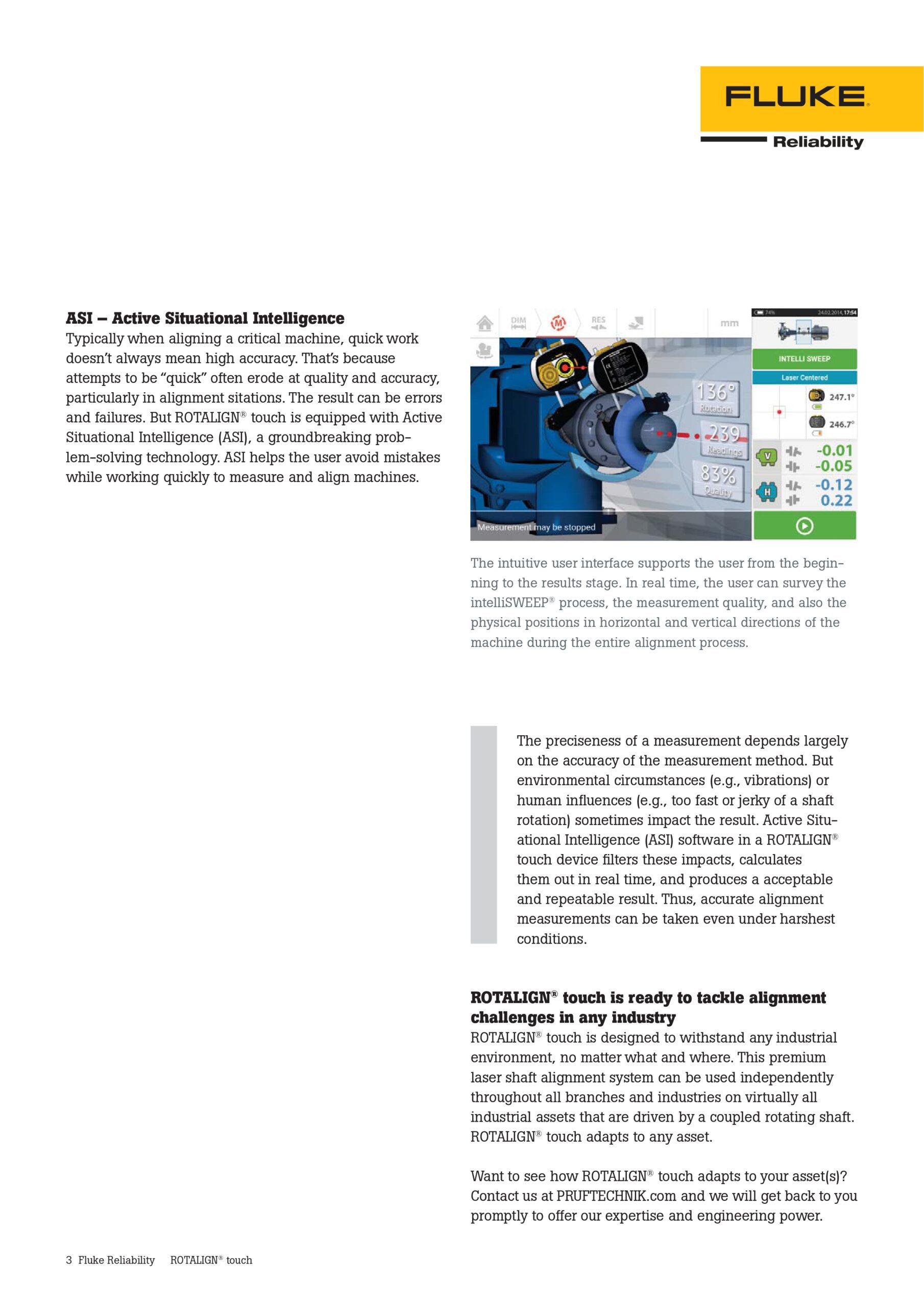

• Adaptive alignment: Integrates Active Situational Intelligence to automatically adjust to various alignment challenges, ensuring optimal performance.

• Multi-coupling live trend: Allows for the monitoring of alignment changes over time across multiple couplings, providing valuable insights into machine behavior.

• Measurement modes: The system offers various measurement modes, including single-point, multi-point, and continuous sweep, to accommodate different alignment scenarios.

• Live Move: RotAlign offers Live Move functionality in both vertical and horizontal planes, enabling real-time adjustments and immediate feedback during the alignment process.

• Advanced diagnostics: Equipped with features like soft foot detection and correction, RotAlign helps identify and rectify common alignment issues, ensuring machinery operates at optimal efficiency.

• Integrated camera: RotAlign includes an integrated camera for documenting alignment conditions and surrounding area, useful for reporting and alignment verification.

• Robust hardware: Designed with IP65 industrial-grade materials, making it suitable for harsh working environments and ensuring durability and longevity.

• Intelligent reporting: Offers detailed report generation capabilities, providing clear and concise documentation of alignment processes, results, and recommendations for maintenance actions.

• Fluke Reliability extended warranty: Gain peace of mind, convenience, device accuracy, and savings on service costs via 2 – 5 year mfg. warranty, 3 free calibrations, and 15% discount on repairs.

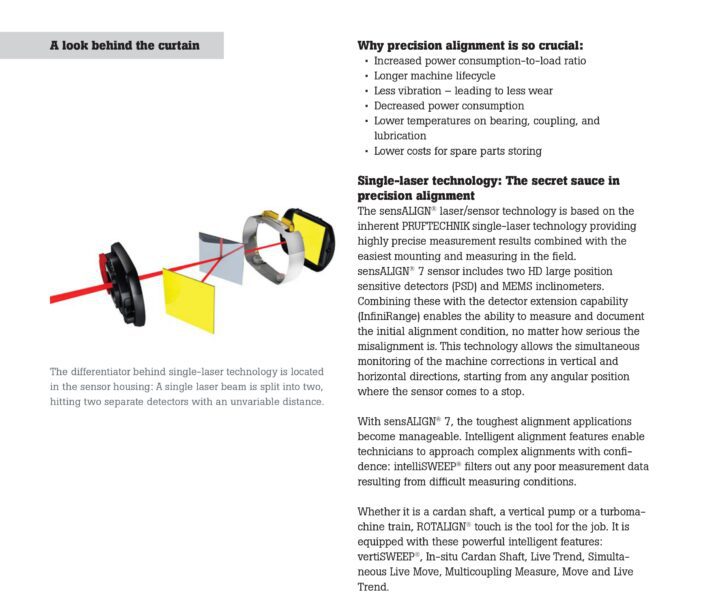

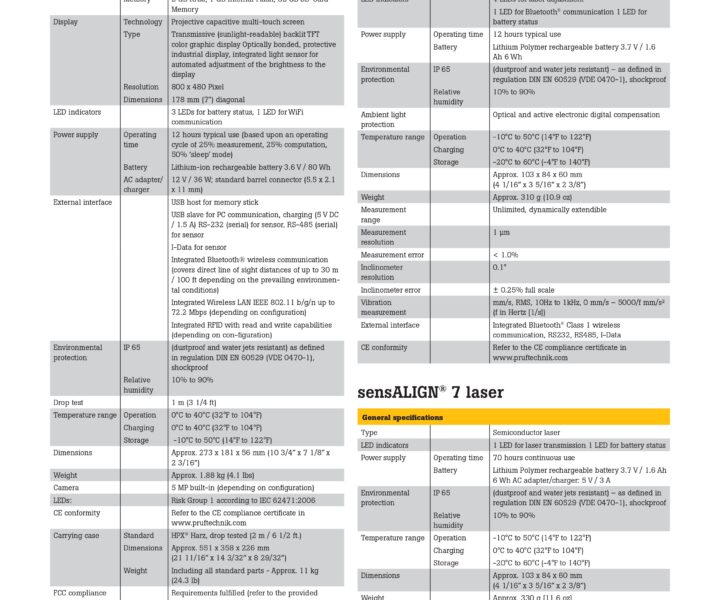

The sensALIGN Series technology is based on the inherent PRUFTECHNIK single-laser technology providing highly precise measurement results and easiest mounting and measuring in the field. sensALIGN 7 sensors include two HD large position-sensitive detectors (PSD) and MEMS inclinometers. Combined with the detector extension capability (InfiniRange), it is always possible to measure and document the initial alignment condition; no matter how big is the misalignment. Furthermore, this technology allows the simultaneous monitoring of the machine corrections in vertical and horizontal directions, starting from any angular position where the sensor comes to stop.


With sensALIGN 7, the door to the toughest alignment applications opens wide. Intelligent alignment features make it possible to approach complex alignments with serenity: intelliSWEEP filters out any poor measurement data due to difficult measuring conditions.


Whether it is a Cardan shaft, a vertical pump, or a turbomachine train, ROTALIGN touch will not let you down. All the best intelligent features are included: vertiSWEEP, Cardan Shaft, Live Trend, Live Move, Multicoupling Measure, Move, and Live Trend.


Click below to know
