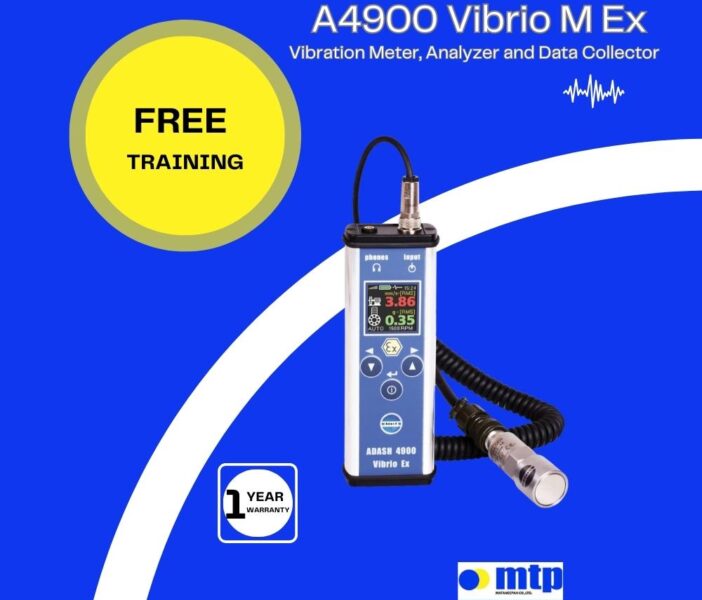

ADASH A4900 Vibrio M Ex

Vibration Meter, Analyzer and Data Collector in Intrinsically Safe Version

Predictive Maintenance based on condition monitoring starts here.

Expert System

automatic machine fault detection

Plug and Play

don’t bother with settings, just measure

Click below for download

ADASH A4900 Vibrio M Ex



CONTACT US

Description

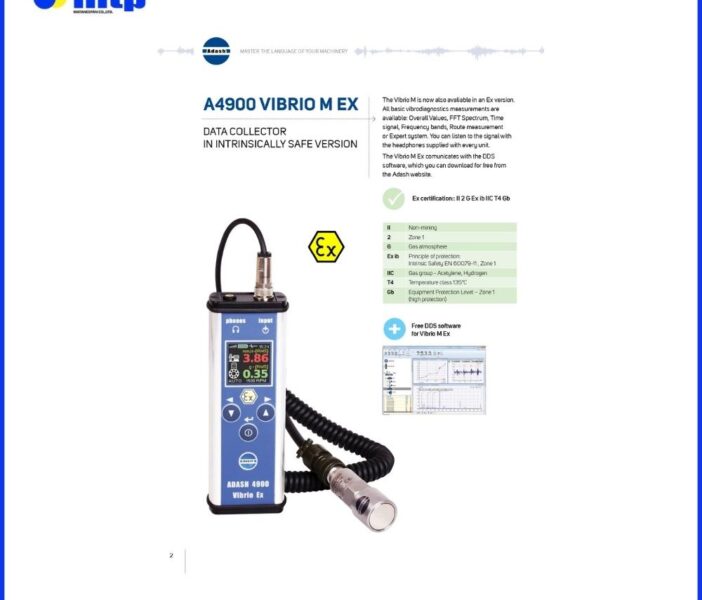

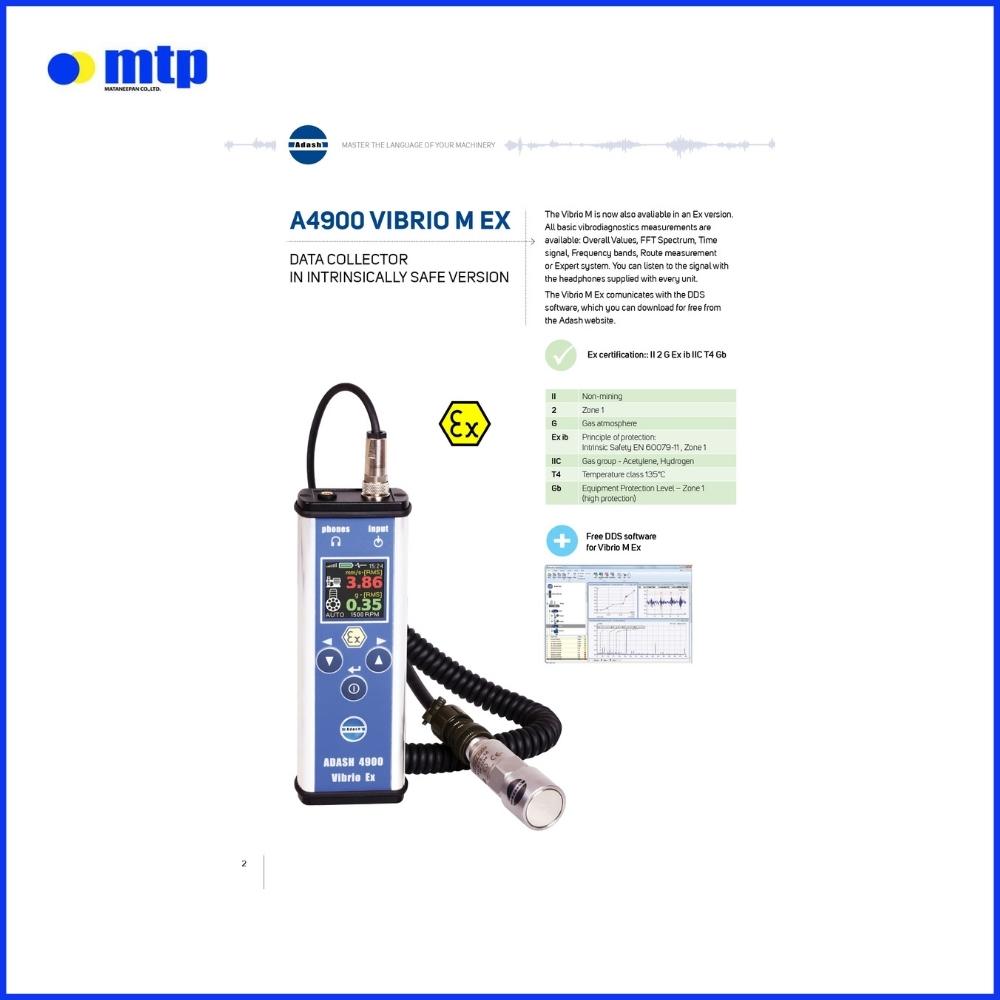

Vibration Meter, Analyzer and Data Collector in Intrinsically Safe Version

Predictive Maintenance based on condition monitoring starts here.

Expert System

  • automatic machine fault detection

Plug and Play

  • don’t bother with settings, just measure

Vibration Meter ADASH A4900 Vibrio M Ex ADASH เครื่องวัดแรงสั่นสะเทือน MATANEEPAN

Vibration Meter ADASH A4900 Vibrio M Ex ADASH เครื่องวัดแรงสั่นสะเทือน MATANEEPAN

MAINTENANCE SWISS ARMY KNIFE

Vibrio M Ex

  • FFT, Time Waveform
  • Acceleration, Velocity, Displacement
  • ISO 10816 standards
  • Stethoscope
  • Memory / PC communication
  • IP65 rating

Vibration Meter ADASH A4900 Vibrio M Ex ADASH เครื่องวัดแรงสั่นสะเทือน MATANEEPAN



UNIVERSAL AND TOUGH

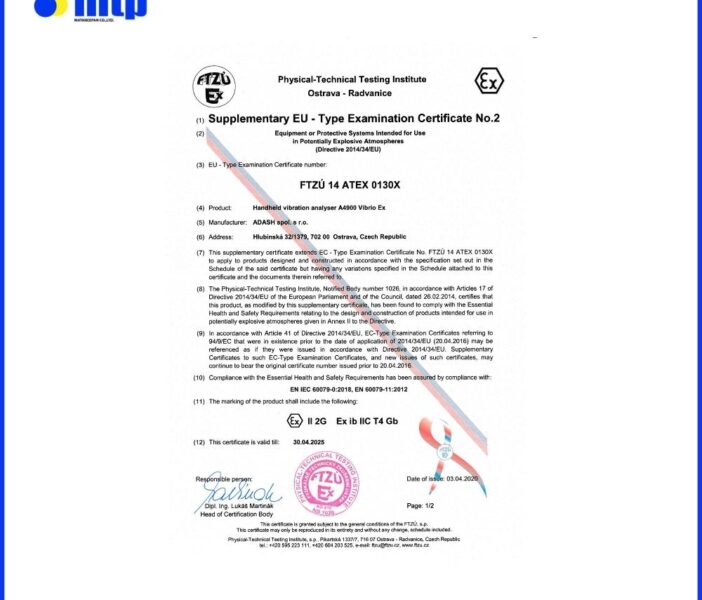

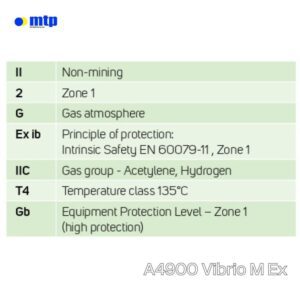

Ex certification: II 2 G Ex ib IIC T4 Gb

  • [II] Non-mining
  • [2] Zone 1
  • [G] Gas atmosphere
  • [Ex ib] Principle of protection: Intrinsic Safety EN 60079-11
  • [IIC] Gas group – Acetylene, Hydrogen
  • [T4] Temperature class 135°C
  • [Gb] Equipment Protection Level – Zone 1 (high protection)



Vibration Meter Vibration Analyzer Data Collector ADASH ADASH A4900 Vibrio M Ex



Vibration Meter ADASH A4900 Vibrio M Ex ADASH เครื่องวัดแรงสั่นสะเทือน MATANEEPAN

  • Heavy duty casing
  • 2 x AA batteries – 7 hours operation
  • Direct measurement from proximity probes (optionally)
  • 3.5 Jack
  • 3 buttons operation
  • Data transfer through sensor connector

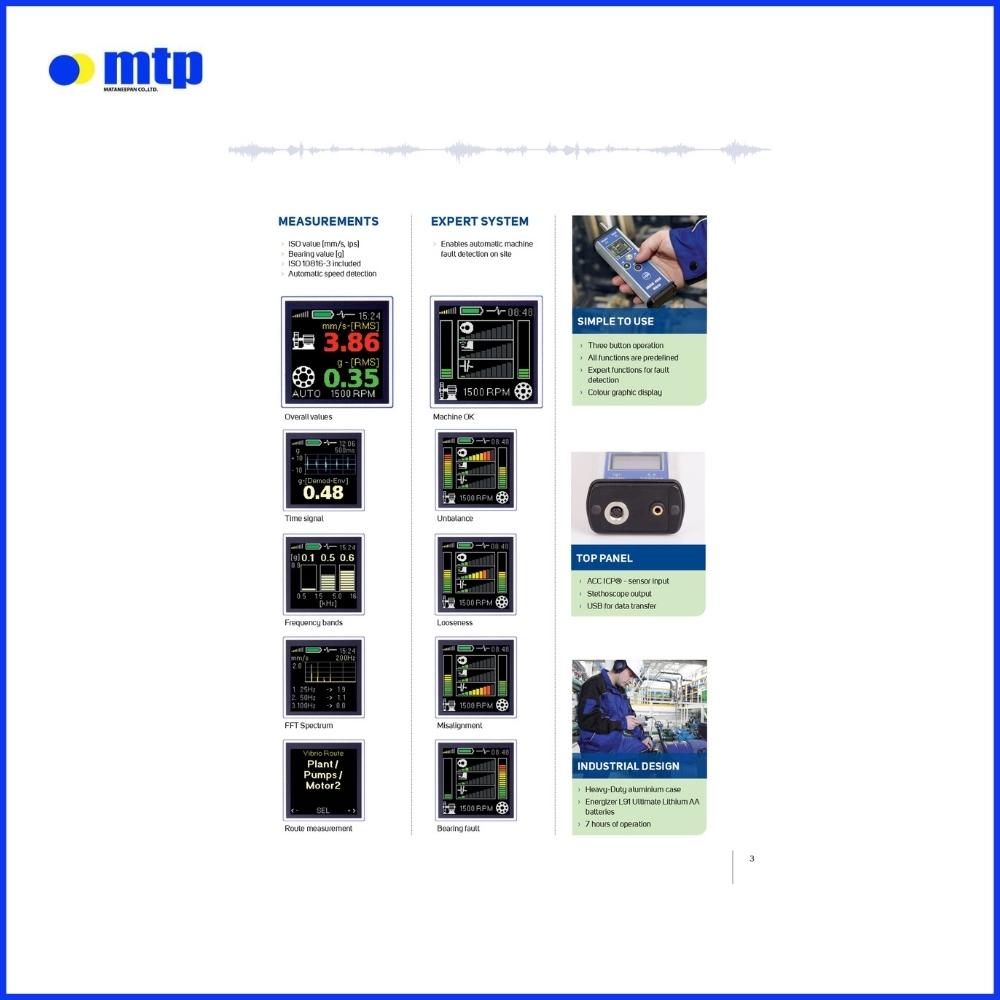

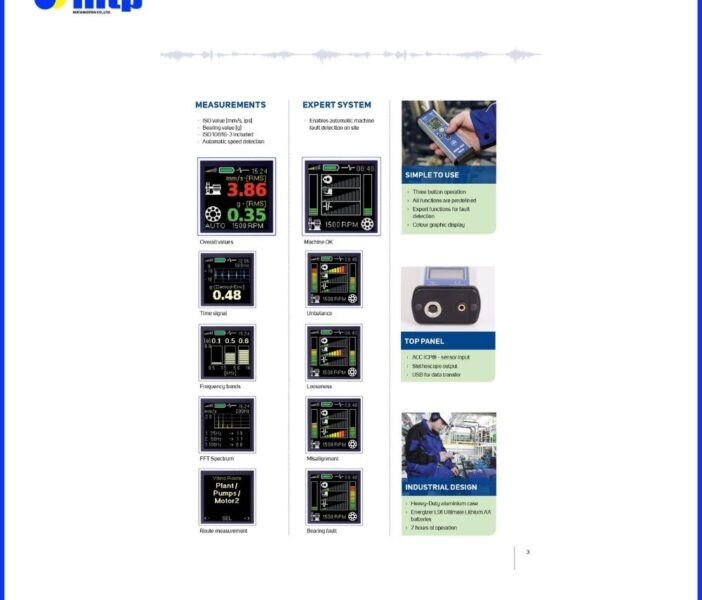

VIBRIO M MEASUREMENTS

All predefined

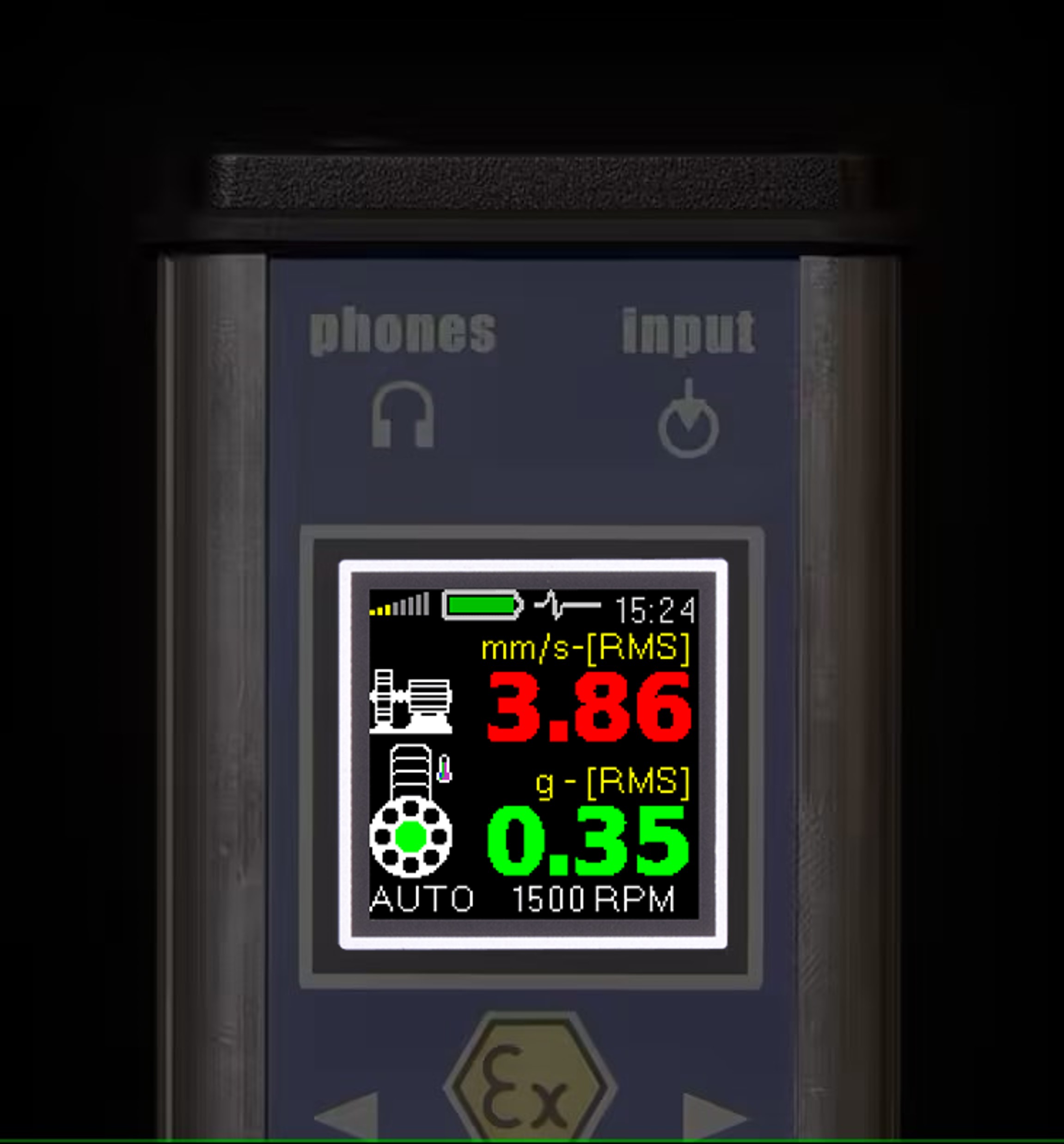

OVERALL VALUES – RMS

Vibration Meter ADASH A4900 Vibrio M Ex ADASH เครื่องวัดแรงสั่นสะเทือน MATANEEPAN



  • Velocity for whole machine body vibrations
  • Acceleration for bearing vibrations
  • Automatic speed detection

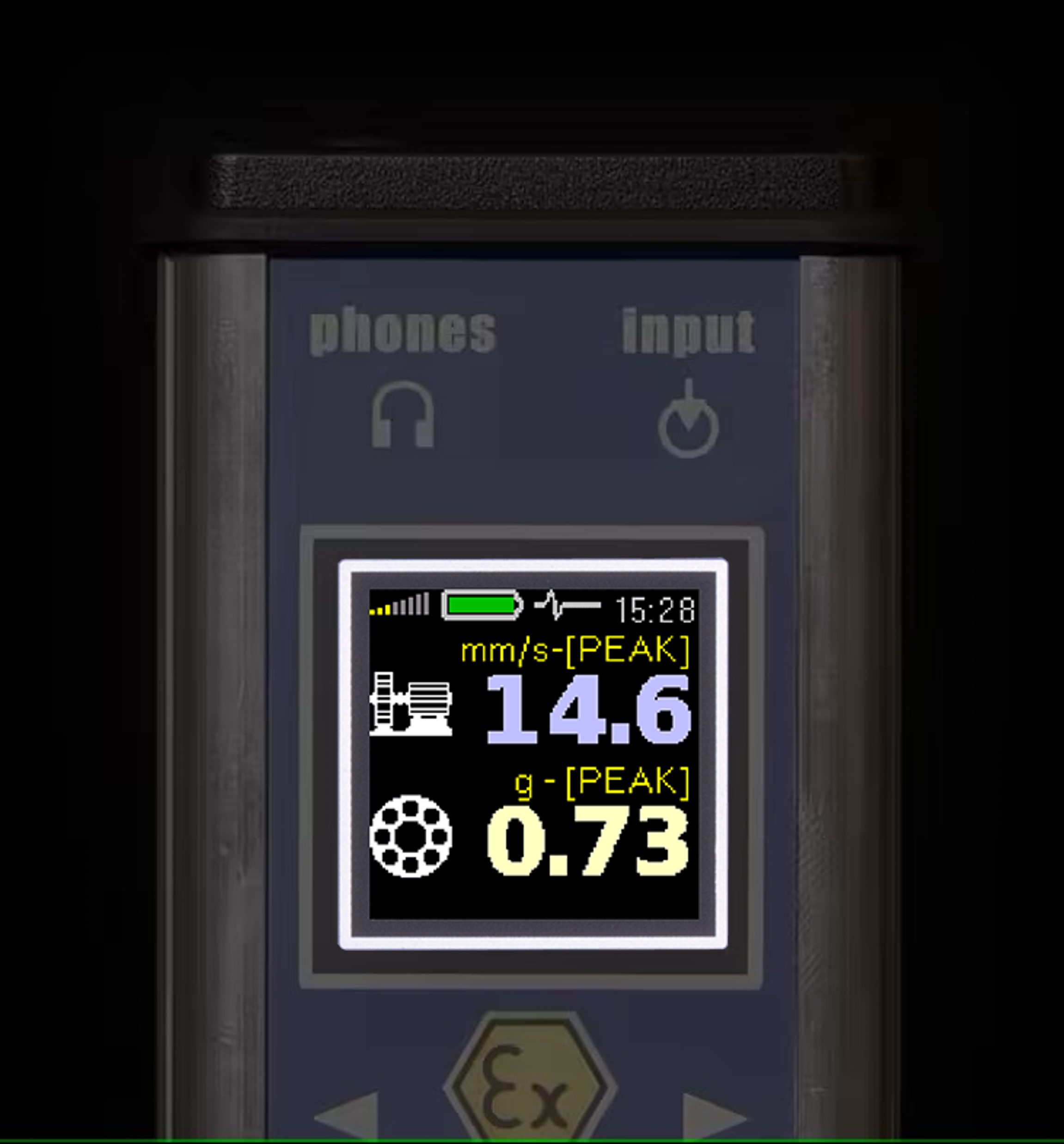

OVERALL VALUES – PEAK

Vibration Meter ADASH A4900 Vibrio M Ex ADASH เครื่องวัดแรงสั่นสะเทือน MATANEEPAN

  • Velocity for whole machine body vibrations
  • Acceleration for bearing vibrations

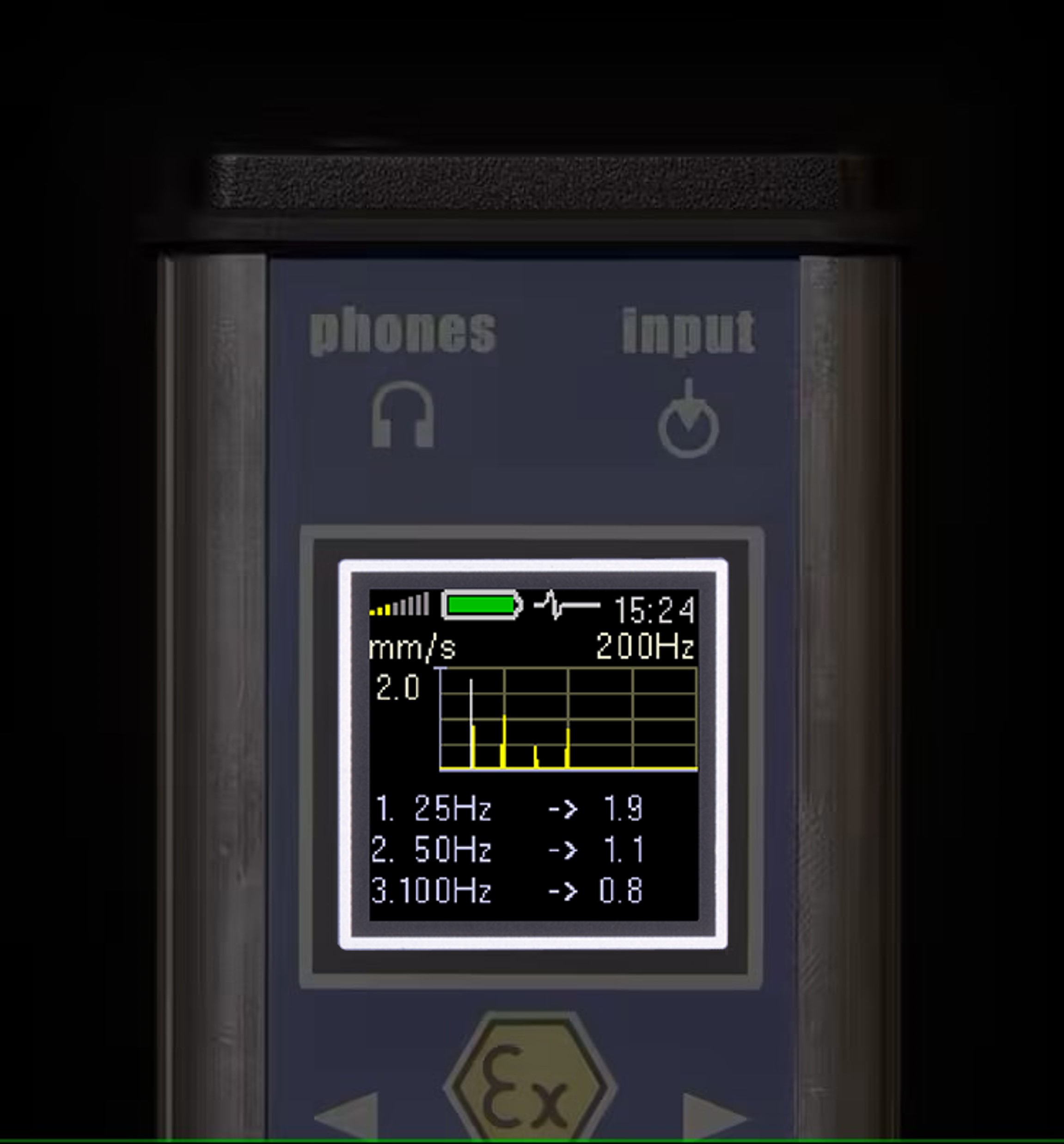

SPECTRUM of  this Vibration Meter

Vibration Meter ADASH A4900 Vibrio M Ex ADASH เครื่องวัดแรงสั่นสะเทือน MATANEEPAN

  • FFT analysis of vibrations 3 max peaks detection

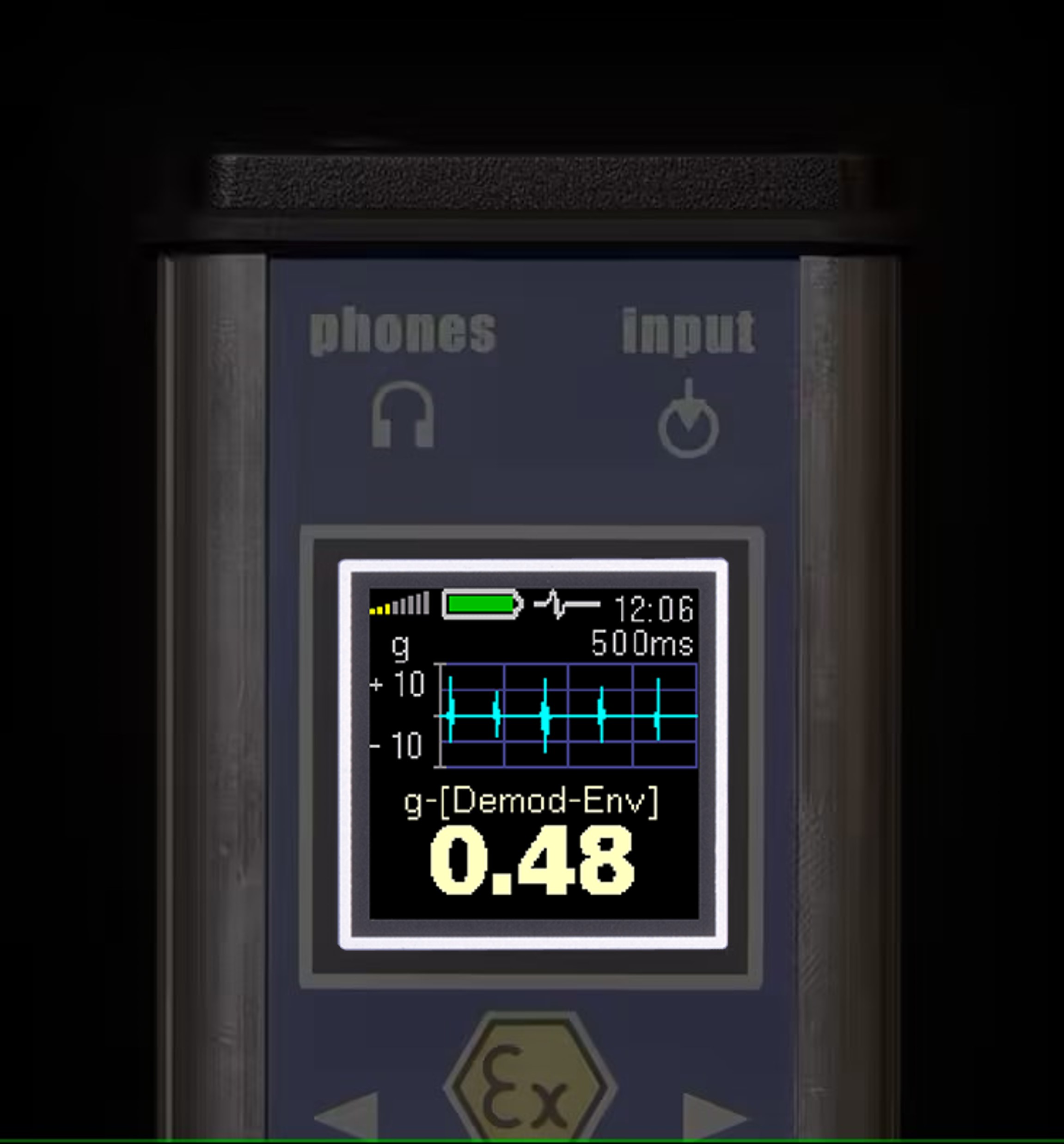

TIME SIGNEL

Vibration Meter ADASH A4900 Vibrio M Ex ADASH เครื่องวัดแรงสั่นสะเทือน MATANEEPAN

  • Time waveform for a bearing shocks observation
  • Demodulation – Envelope value

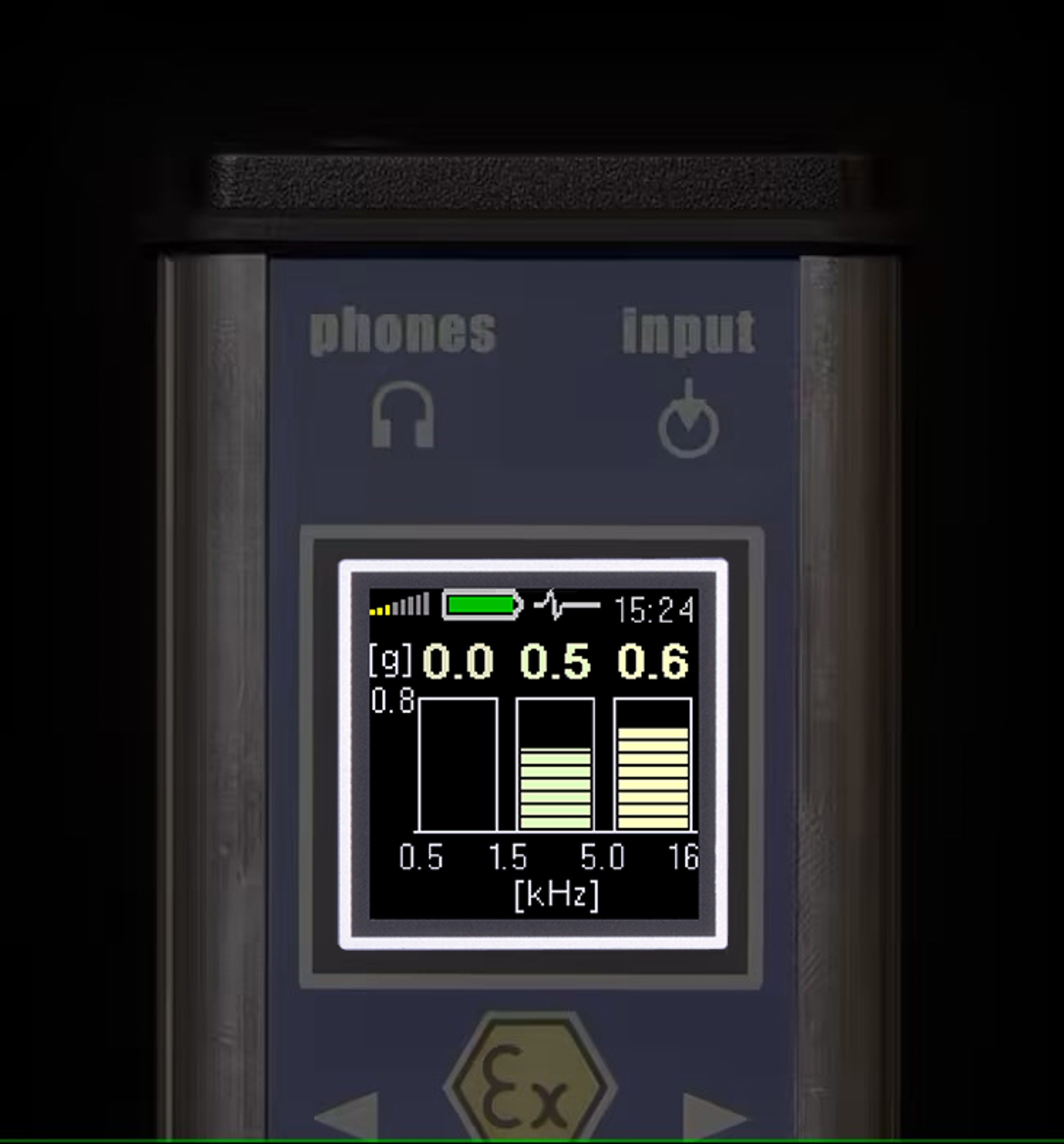

FREQUENCY BANDS

Vibration Meter ADASH A4900 Vibrio M Ex ADASH เครื่องวัดแรงสั่นสะเทือน MATANEEPAN

  • 3 Frequency bands for highest acceleration signal detection

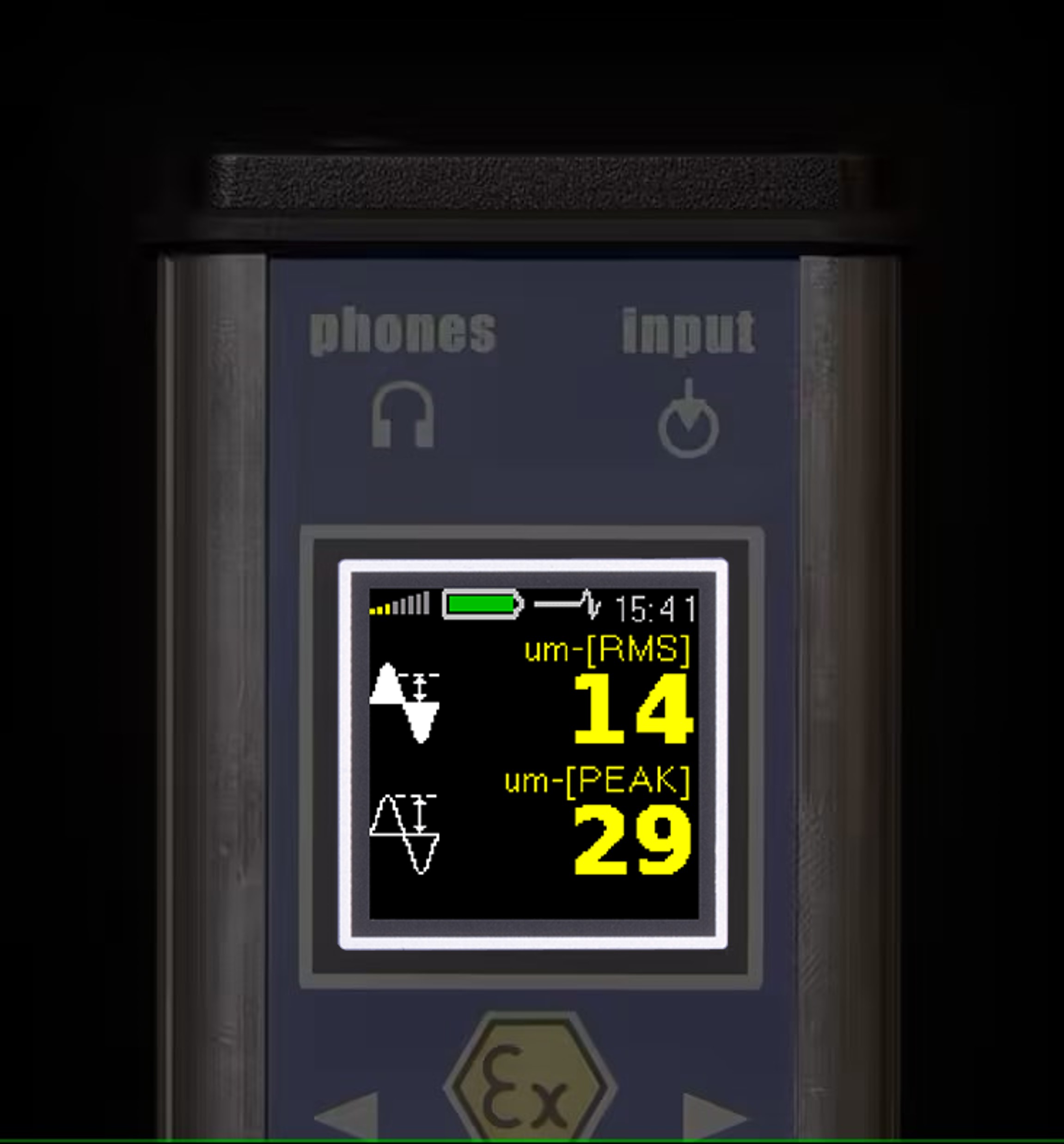

DISPLACEMENT

Vibration Meter ADASH A4900 Vibrio M Ex ADASH เครื่องวัดแรงสั่นสะเทือน MATANEEPAN



  • Overall RMS and Peak measurement of vibration displacement

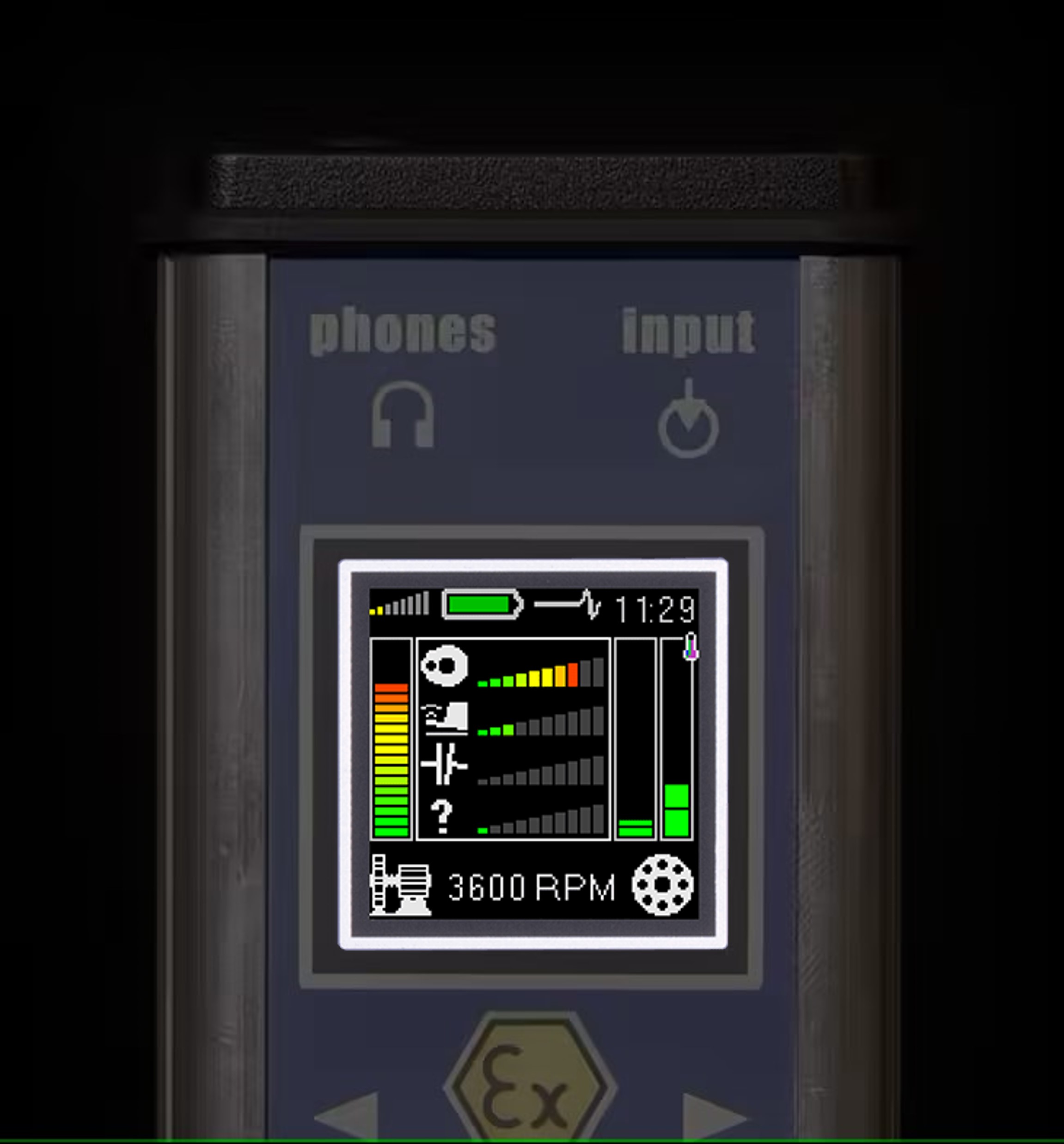

FASIT (FAULT SUORCE IDENTIFICATION TOOL)

Automatic detection of:

Vibration Meter ADASH A4900 Vibrio M Ex ADASH เครื่องวัดแรงสั่นสะเทือน MATANEEPAN

  • Unbalance
  • Looseness
  • Misalignment
  • Bearing condition

VIBRIO M + free DDS SOFTWARE

  • Free trending and data analysis software

Collect & Import



Vibrio M Ex along with free DDS software is the easiest start of your predictive maintenance program based on machinery condition.

Collect the data with Vibrio M Ex regularly and import them into DDS software. Follow vibration trends and observe actual condition of your machines.

Vibration Meter ADASH A4900 Vibrio M Ex ADASH เครื่องวัดแรงสั่นสะเทือน MATANEEPAN

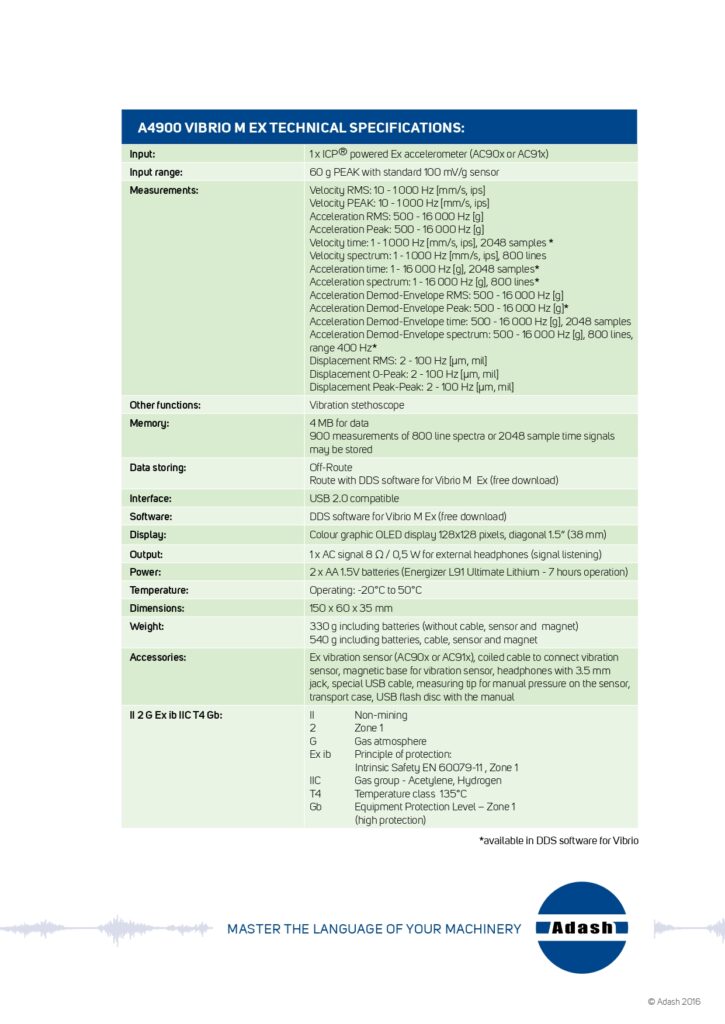

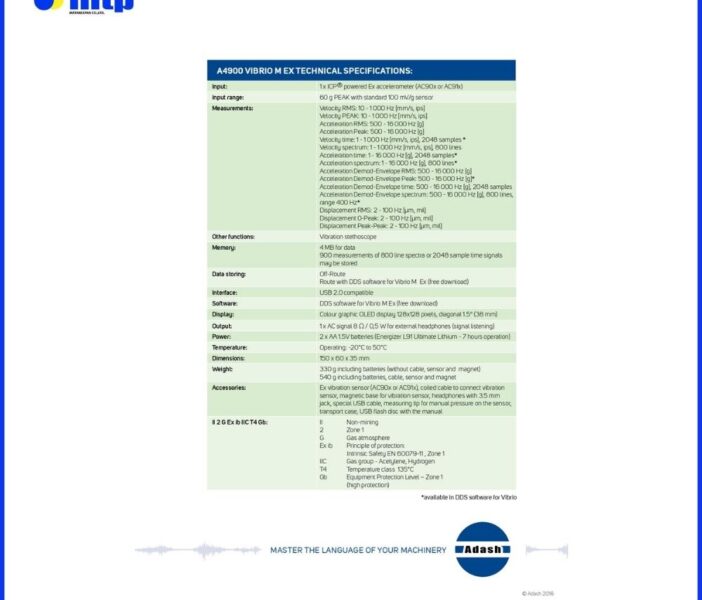

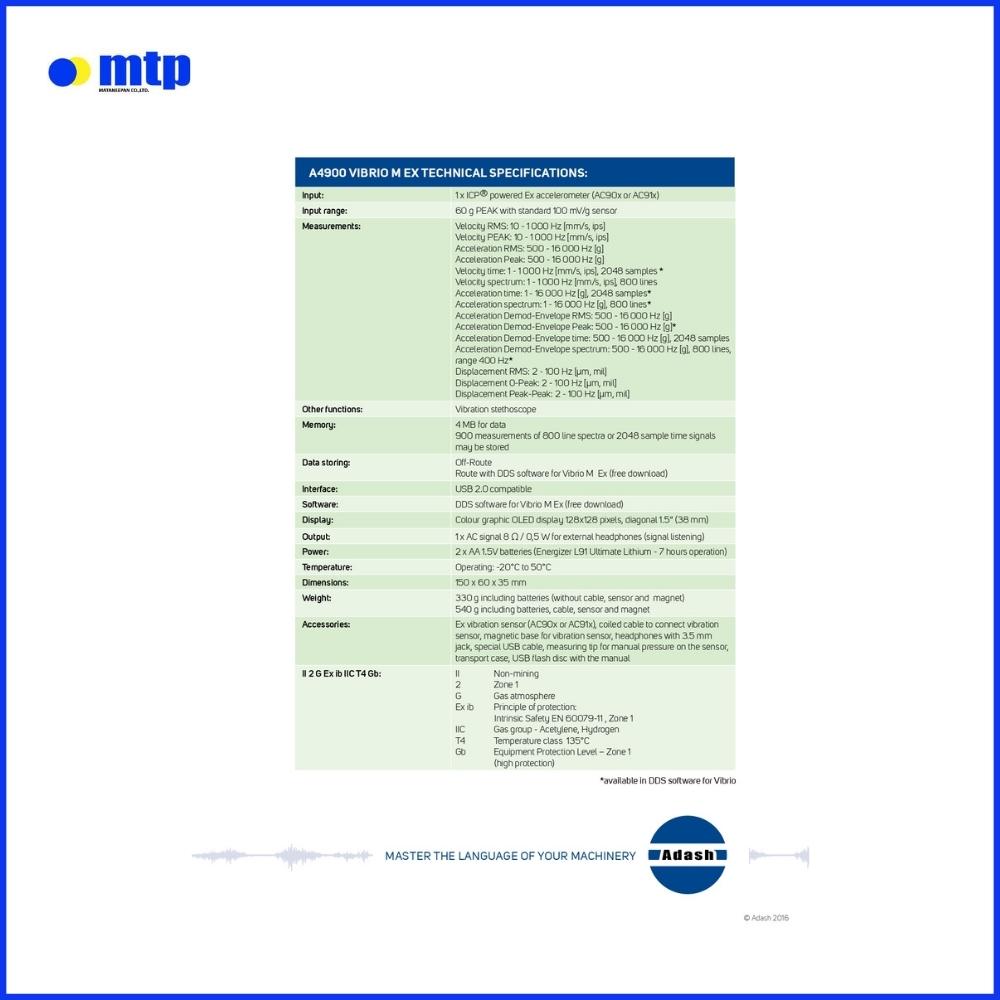

 Technical specifications  OF Vibration Meter ADASH A4900 Vibrio M Ex



Vibrio M Ex specifications

Input:

  • 1 x ICP® powered accelerometer

Input range:

  • 60 g PEAK with standard 100 mV/g sensor
    e.g. 600 g PEAK with 10 mV/g sensor (sensitivity is adjustable in the device)

Measurements:

  • Velocity RMS: 10 – 1 000 Hz [mm/s, ips]
  • Velocity Peak: 10 – 1 000 Hz [mm/s, ips]
  • Acceleration RMS: 500 – 16 kHz [g]
  • Acceleration Peak: 500 – 16 kHz [g]
  • Velocity time: 1 – 1 000 Hz [mm/s, ips], 2048 samples
  • Velocity spectrum: 1 – 1 000 Hz [mm/s, ips], 800 lines
  • Acceleration time: 1 – 16 kHz [g], 2048 samples*
  • Acceleration spectrum: 1 – 16 kHz [g], 800 lines*
  • Acceleration Demod-Envelope RMS: 500 – 16 kHz [g]
  • Acceleration Demod-Envelope Peak: 500 – 16 kHz [g]*
  • Acceleration Demod-Envelope time: 500 – 16 kHz [g], 2048 samples
  • Acceleration Demod-Envelope spectrum: 500 – 16 kHz [g], 800 lines, range 400 Hz*
  • Displacement RMS: 2 – 100 Hz [µm, mil]
  • Displacement 0-Peak: 2 – 100 Hz [µm, mil]
  • Displacement Peak-Peak: 2 – 100 Hz [µm, mil]

    * available in DDS software for Vibrio

Other functions:

  • Stethoscope for listening machine (bearing) noises

Memory:

  • 4 MB for data:
  • 120960 overall values
  • or 900 measurements of 800 line spectra
  • or 2048 sample time signals

Data storing:

  • Off-Route Route with DDS software (free download)

Interface:

  • USB 3.0, 2.0 compatible

Software:

  • Free version of DDS software (limited database size)

Display:

  • Colour graphic OLED display 128×128 pixels, diagonal 1.5“ (38 mm)

Output:

  • 1 x AC signal 8 Ω / 0,5 W for external headphones (signal listening)

Power:

  • 2 x AA 1.5V batteries  (alkaline, NiMH, Lithium – 8 hours of operation)

Temperature:

  • Operating: -5°C to 55°C

Dimensions:

  • 150 x 60 x 35 mm

Weight:

  • 330 g including batteries (without cable, sensor and magnet)
  • 540 g including batteries, cable, sensor and magnet

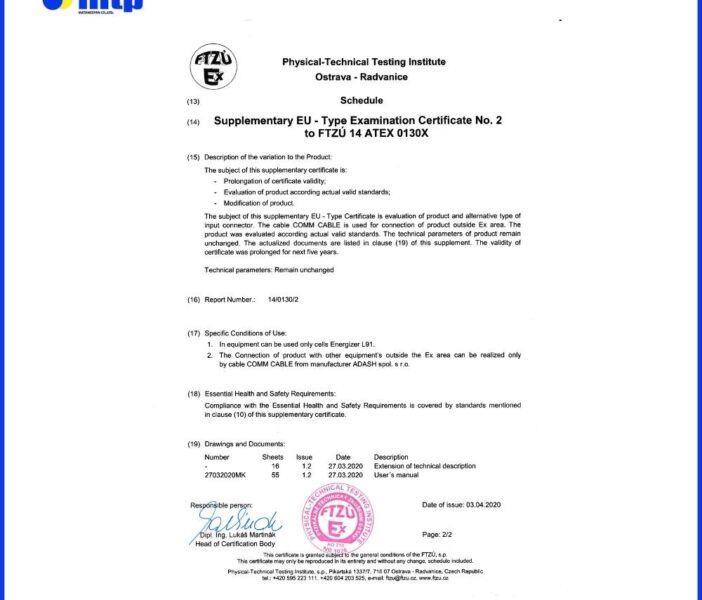

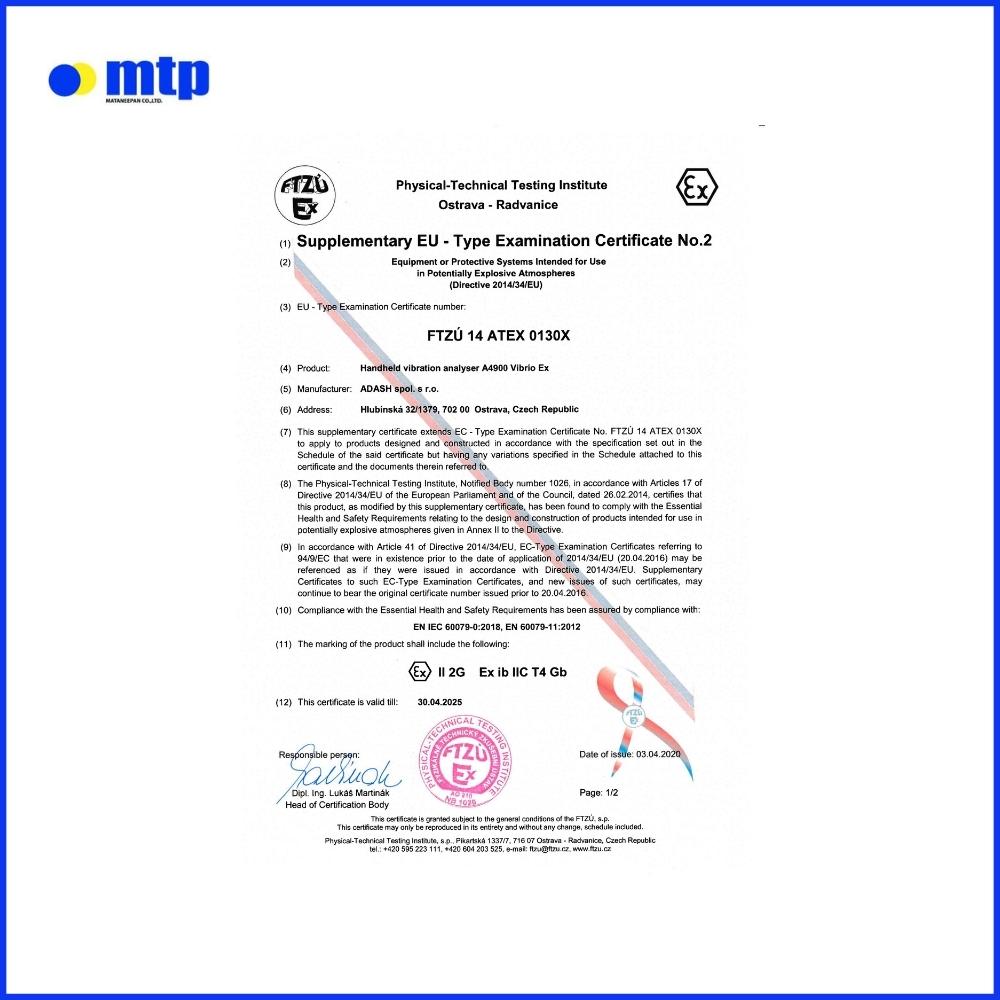

Ex certification:

  • [II] Non-mining
  • [2] Zone 1
  • [G] Gas atmosphere
  • [Ex ib] Principle of protection: Intrinsic Safety EN 60079-11
  • [IIC] Gas group – Acetylene, Hydrogen
  • [T4] Temperature class 135°C
  • [Gb] Equipment Protection Level – Zone 1 (high protection)

Accessories:

  • vibration sensor
  • coiled cable to connect vibration sensor
  • magnetic base for vibration sensor
  • headphones with 3.5 mm jack
  • USB cable
  • measuring tip for manual pressure on the sensor
  • transport case
  • USB flash drive with the manual

Vibration Meter ADASH A4900 Vibrio M Ex ADASH เครื่องวัดแรงสั่นสะเทือน MATANEEPAN
