10KV, 12KV & 15KV Digital Surge Tester with DC Hipot & Resistance Test

APPLICATIONS

This tester is widely used for Testing of Newly and Rewound Motors. It helps in finding and predicting the faults in windings before it actually happens. This tester is extremely portable that can be easily used in the motor shop and in field to test the following:

  • 1φ & 3φ Windings
  • LT, HT Coils & Stators
  • AC Traction
  • Generator Coils
  • Solenoids & Chokes



CONTACT US

Description

10KV, 12KV & 15KV Digital Surge Tester with DC Hipot & Resistance Test

Model: D-10KHR, D-12KHR & D-15KHR

The Digital Surge Tester is designed specifically to test the coils and windings of Medium range AC Rotating machines ranging up to 6.6KV. The Surge Tester has an Embedded Industrial PC with 8 inch Touch screen Display and software to Store, Recall and Print the Test Reports.

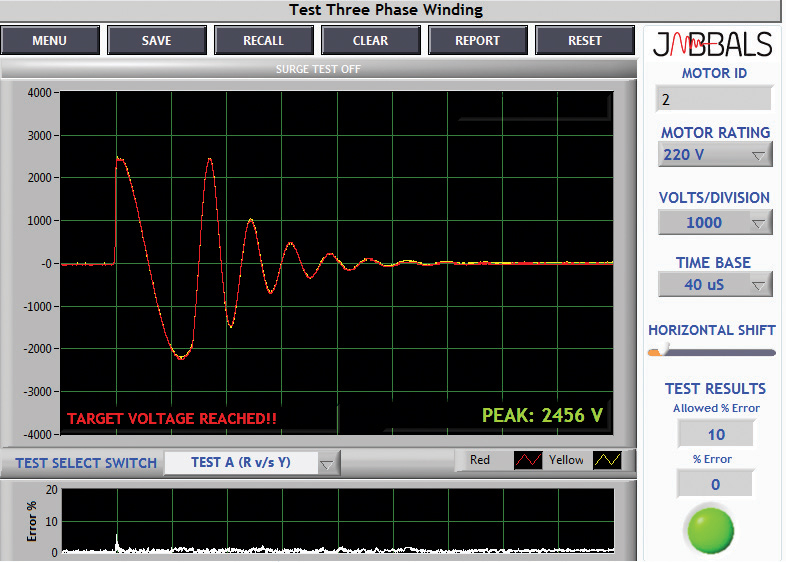

SOFTWARE TEST SCREEN



FEATURES

  • Infinite Model Storage Capability
  • Job Work Management Area For Motor Data Reference
  • Dual Feature To Either Store And Compare Against Master Waveform Or Compare Between Two Windings Simultaneously
  • Colour Coded Waveforms For Better Analysis
  • LABVIEW Software To Store, Print And Recall Surge Test Waveforms & Reports
  • Graphical And Numerical Representation Of %Error Between The Waveforms
  • Automatic Report Generation In MS Word
  • Target Voltage Indication Based On Motor Ratings



SOFTWARE INDICATOR & CONTROLS

  •  Adjustable Volts/Div And Time Base
  •  Colour Coded Waveform Display
  •  Surge Test Peak Voltage Indicator
  •  Graphical And Numerical %Error Display
  •  Target Voltage Indicator Based On Motor Rating
  •  Test Result Lamp Indicator
  •  Save, Recall And Print Waveforms & Reports



BENEFITS

  • Zero Start Lock For Operator Safety
  • Footswitch For Hands Free Operation
  • Highly Sensitive Fault Detection Capability
  • Test Leads Insulated To 45KV Rating
  • 8 Inch Touch Screen Colour Display
  • Leads Energized Warning Indicator
  • 1φ & 3φ Test Select Switch
  • Printer Can Be Connected To Tester Via USB For Direct Printouts



SPECIFICATIONS OF PC

  • 8 Inch Touch Screen Display
  • Industrial Grade CPU (Intel Dual Core)
  • 4GB RAM / 240GB SSD
  • Windows 10 / MS Office / Anti Virus
  • Dust Proof / Water Resistant / 0-60O C
  • 2 USB Ports
  • Wireless Keyboard & Mouse
